51A22 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

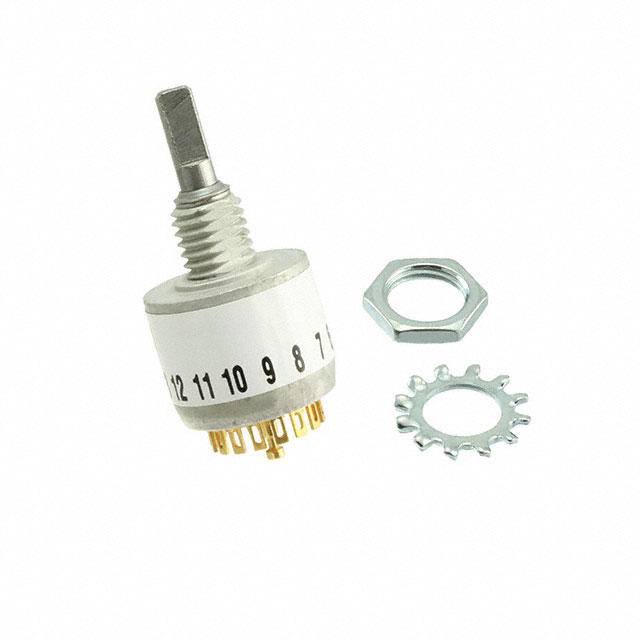

ROTARY SWITCH,STRAIGHT,NUMBER OF POSITIONS:12,SOLDER TERMINAL,ROTARY SHAFT
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Contact Finish | Index Stops | Voltage Rating - AC | Number of Positions | Number of Poles per Deck | Depth Behind Panel [custom] | Termination Style | Angle of Throw | Number of Decks [custom] | Actuator Type | Actuator Length [x] | Voltage Rating - DC | Mounting Type | Circuit per Deck | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 12 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP12T | 150 mA 200 mA |
Grayhill Inc. | 6.45 mm | Shorting (MBB) | Gold | Fixed | 115 V | 16 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP16T | 150 mA 200 mA |
Grayhill Inc. | Shorting (MBB) | Gold | Fixed | 115 V | 10 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP10T | 150 mA 200 mA | |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 8 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP8T | 150 mA 200 mA |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP3T | 150 mA 200 mA | |
 Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 14 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP14T | 150 mA 200 mA |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 13 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP13T | 150 mA 200 mA |
 Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Continuous | 115 V | 16 | 1 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | SP16T | 150 mA 200 mA |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 2 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | DP3T | 150 mA 200 mA | |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Gold | Fixed | 115 V | 6 | 2 | 18.77 mm | Solder Lug | 22.5 ° | 1 | Flatted (3.17mm Dia) | 9.53 mm | 28 V | Panel Mount | DP6T | 150 mA 200 mA |
