AAA4FB Series

Catalog

AAA SERIES 4 PIN XLR FEMALE CABLE MOUNT, GOLD PINS / BLACK METAL

Part	Mounting Type	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Connector Type	Primary Material	Applications	Orientation	Shell Finish	Insert Material	Shell Size - Insert	Shell Material	Contact Material	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Number of Positions	Color	Shielding	Voltage Rating	Current Rating (Amps)	Features	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]

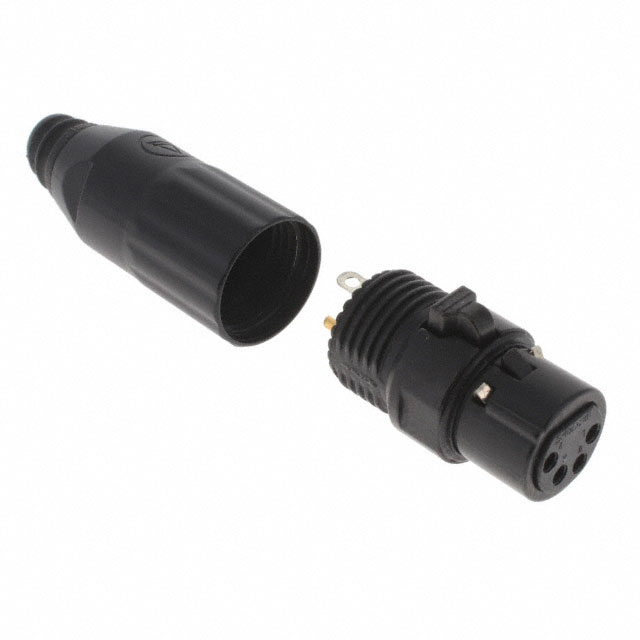

SWITCHCRAFT/CONXALL AAA4FBAUZ	Free Hanging (In-Line)	Gold	2.54 mm	5.59 mm	0.22 in	0.1 "	Plug Female Sockets	Metal	Audio Industrial Instrumentation Medical	Keyed	Chrome	Thermoplastic	XLR	Zinc Alloy	Copper Alloy	Chrome	Zinc	4	Black	Shielded	125 VAC	10 A	Backshell Cable Clamp Ground Strain Relief	Latch Lock

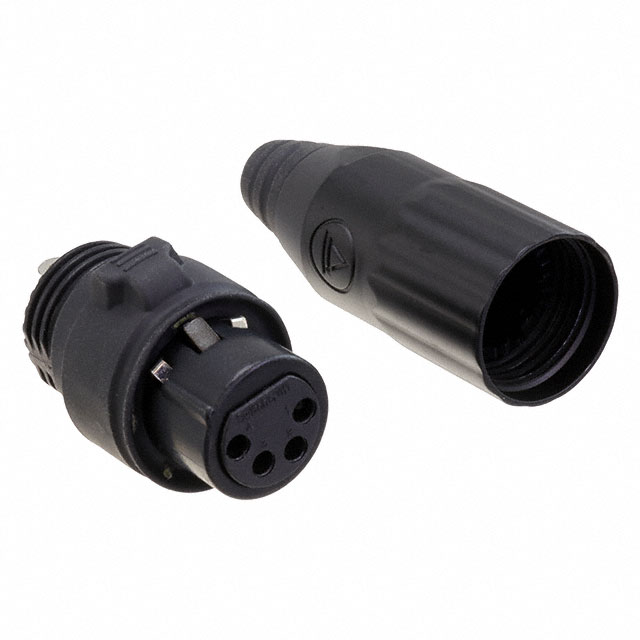

SWITCHCRAFT/CONXALL AAA4FBZH	Free Hanging (In-Line)	Silver	3.81 mm	7.24 mm	0.285 in	0.15 "	Plug Female Sockets	Metal	Audio Instrumentation	Keyed	Chrome	Thermoplastic	XLR	Zinc Alloy	Copper Alloy	Chrome	Zinc	4	Black	Shielded			Backshell Cable Clamp Ground Strain Relief	Latch Lock	IP66 - Dust Tight Water Resistant	-40 C	65 °C
SWITCHCRAFT/CONXALL AAA4FBZ	Free Hanging (In-Line)	Silver	2.54 mm	5.59 mm	0.22 in	0.1 "	Plug Female Sockets	Metal	Audio Industrial Instrumentation Medical	Keyed	Chrome	Thermoplastic	XLR	Zinc Alloy	Copper Alloy	Chrome	Zinc	4	Black	Shielded	125 VAC	10 A	Backshell Cable Clamp Ground Strain Relief	Latch Lock
SWITCHCRAFT/CONXALL AAA4FBAUZH	Free Hanging (In-Line)	Gold	3.81 mm	7.24 mm	0.285 in	0.15 "	Plug Female Sockets	Metal	Audio Instrumentation	Keyed	Chrome	Thermoplastic	XLR	Zinc Alloy	Copper Alloy	Chrome	Zinc	4	Black	Shielded			Backshell Cable Clamp Ground Strain Relief	Latch Lock	IP66 - Dust Tight Water Resistant	-40 C	65 °C
