VBO105 Series

Catalog

BRIDGE RECT 1P 1.8KV 107A PWS-C

Part	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Package / Case	Mounting Type	Diode Type	Voltage - Forward (Vf) (Max) @ If [Max]
LITTELFUSE VBO105-18NO7	PWS-C	107 A	-40 °C	150 °C	Standard	1.6 V	300 µA	1.8 kV	PWS-C	Chassis Mount	Single Phase
LITTELFUSE VBO105-12NO7	PWS-C	107 A	-40 °C	150 °C	Standard		100 µA	1.2 kV	PWS-C	Chassis Mount	Single Phase	1.09 V
LITTELFUSE VBO105-14NO7	PWS-C	107 A	-40 °C	150 °C	Standard	1.6 V	300 µA	1.4 kV	PWS-C	Chassis Mount	Single Phase

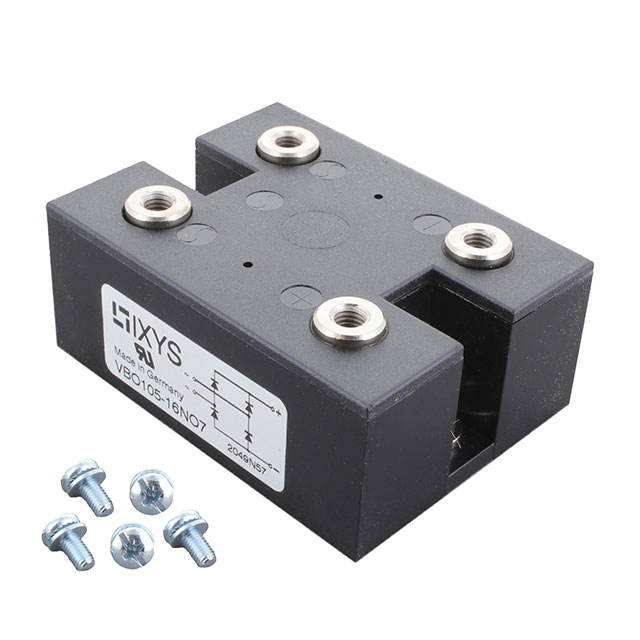

LITTELFUSE VBO105-16NO7	PWS-C	107 A	-40 °C	150 °C	Standard	1.6 V	300 µA	1.6 kV	PWS-C	Chassis Mount	Single Phase
LITTELFUSE VBO105-08NO7	PWS-C	107 A	-40 °C	150 °C	Standard		100 µA	800 V	PWS-C	Chassis Mount	Single Phase	1.09 V
