951105 Series

Catalog

CONN HEADER SMD R/A 5POS 2MM

Part	Contact Shape	Number of Rows	Features	Mounting Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post [custom]	Contact Length - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height
3M Electronic Specialty 951105-4620-AR-PT	Square	1	Pick and Place	Right Angle Surface Mount	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	105 ░C	-25 °C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	2 mm	0.079 in	Solder	4.45 mm	0.175 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold
3M Electronic Specialty 951105-4620-AR-PR	Square	1	Pick and Place	Right Angle Surface Mount	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	105 ░C	-25 °C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	2 mm	0.079 in	Solder	4.45 mm	0.175 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold
3M Electronic Specialty 951105-7722-AR	Square	1		Right Angle Through Hole	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	125 °C	-55 C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	2 mm	0.079 in	Solder	7.75 mm	0.305 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold	0.11 in	2.79 mm
3M Electronic Specialty 951105-7622-AR	Square	1		Right Angle Through Hole	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header Header Cuttable	125 °C	-55 C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	2 mm	0.079 in	Solder	4.4 mm	0.173 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold	0.11 in	2.79 mm	2 A

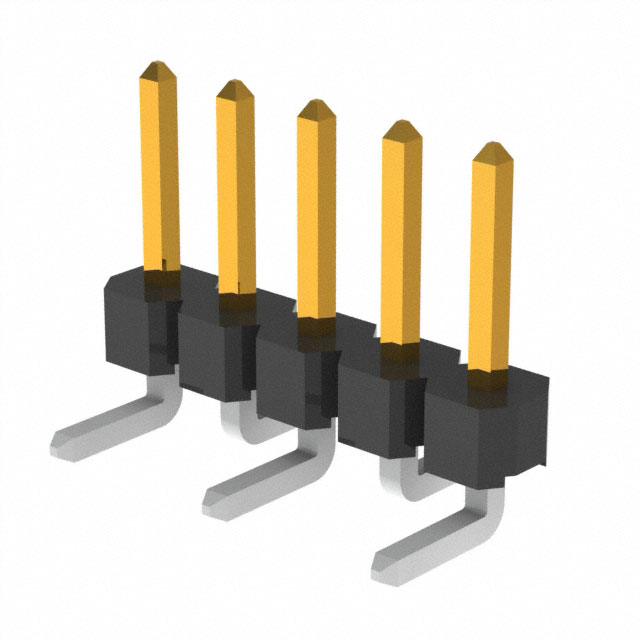

3M Electronic Specialty 951105-2530-AR-PR	Square	1	Pick and Place	Surface Mount	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	105 ░C	-25 °C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	1.52 mm	0.06 in	Solder	4 mm	0.157 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold
3M Electronic Specialty 951105-4620-AR-TP	Square	1		Right Angle Surface Mount	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	105 ░C	-25 °C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	2 mm	0.079 in	Solder	4.45 mm	0.175 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold
3M Electronic Specialty 951105-8622-AR	Square	1		Through Hole	Unshrouded	39.4 çin	1 çm	Thermoplastic	Header	105 ░C 125 °C	-55 C -40 C	0.079 "	2 mm	5	Push-Pull	UL94 V-0	1.52 mm	0.06 in	Solder	4.4 mm	0.173 in	Copper Alloy	Male Pin	Tin	Flash	Black	All	Gold	0.11 in	2.79 mm		0.343 in	8.7 mm	0.059 in	1.5 mm
