PHH227H Series
Manufacturer: KEMET
Beta
⌘K

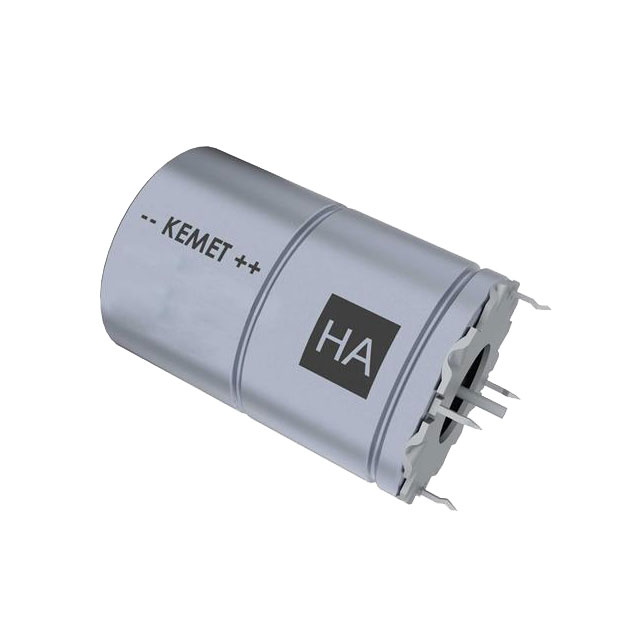

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, VIBRATION-PROOF, 3700 ΜF, ± 20%, 25 V, RADIAL LEADED
| Part | Package / Case | Ripple Current @ High Frequency | Voltage - Rated | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | ESR (Equivalent Series Resistance) | Tolerance | Ripple Current @ Low Frequency | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Type | Lifetime @ Temp. | Applications | Size / Dimension [diameter] | Size / Dimension [diameter] | Ratings | Capacitance | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Can Radial | 39.5 A | 25 VDC | 0.6 in | 15.24 mm | 125 °C | -40 C | 65 mOhm | 20 % | 7.9 A | Through Hole | 1.091 in | 27.7 mm | Hybrid | 3000 Hrs | Automotive | 18.2 mm | 0.717 " | AEC-Q200 | 3700 µF | High Vibration | ||
KEMET | Can Radial | 36.7 A | 25 VDC | 0.6 in | 15.24 mm | 125 °C | -40 C | 72 mOhms | 20 % | 7.34 A | Through Hole | Hybrid | 3000 Hrs | Automotive | 16.2 mm | 0.638 in | AEC-Q200 | 3600 µF | High Vibration | 35.7 mm | 1.398 in |
