SMS4PH Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

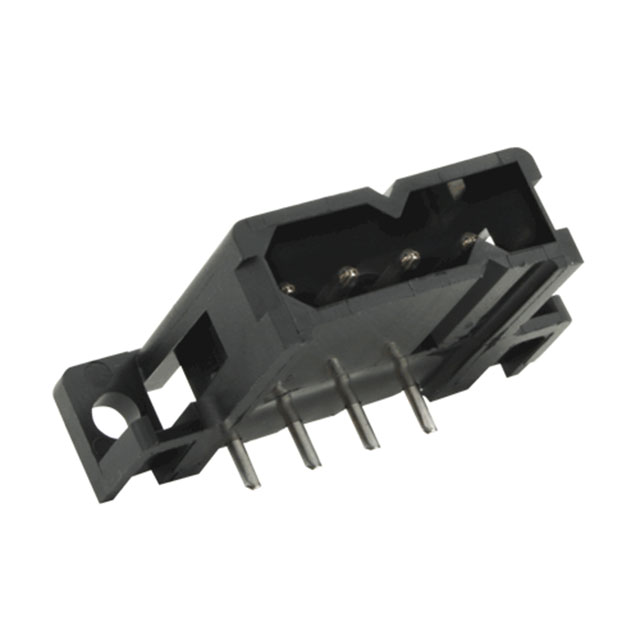

CONN HEADER R/A 4POS 5.08MM
| Part | Number of Positions | Contact Shape | Termination | Number of Rows | Connector Type | Mounting Type | Features | Contact Type | Style | Number of Positions Loaded | Shrouding | Contact Finish - Mating | Material Flammability Rating | Contact Finish Thickness - Mating | Pitch - Mating | Contact Material | Insulation Color | Operating Temperature (Max) | Operating Temperature (Min) | Insulation Material | Insulation Height | Contact Length - Post | Contact Finish - Post | Fastening Type | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 4 | Circular | Solder | 1 | Header | Right Angle Through Hole | Mounting Flange | Male Pin | Board Cable/Wire | All | Shrouded - 4 Wall | Tin | UL94 V-0 | 47.2 µin | 0.2 in | Copper Alloy | Black | 125 °C | -55 °C | Glass Filled Thermoplastic | 0.37 in | 0.165 in | Tin | Push-Pull | 5 A |
