LLF70 Series

Catalog

FLOAT SWITCH, LLF70 SERIES, HORIZONTAL, EXTERNAL FITTING, NYLON, 25 VA, 1 M PVC LEADS

Part	Voltage Rating	Minimum Liquid Specific Gravity [Min]	Current	Mounting Type	Mounting Type	Mounting Type	Output Type	Type	Output Configuration	Switch Actuation Level	Switch Actuation Level	Material - Housing & Prism	Operating Temperature [Max]	Operating Temperature [Min]
Sensata-Crydom LLF73Y100RM	120 VDC	0.7	600 mA	1 in	25.4 mm	Male NPT	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Nylon
Sensata-Crydom LLF76HNP	300 VDC	0.7	1 A			M12 Thread Panel Mount	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyphenylene Sulphide (PPS)	120 °C	-10 °C

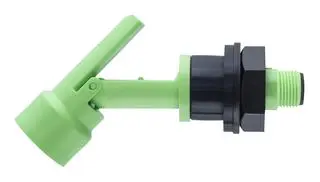

Sensata-Crydom LLF77YNP	120 VDC	0.7	600 mA			M12 Thread Panel Mount	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C
Sensata-Crydom LLF77Y100GV	120 VDC	0.7	600 mA	1 in	25.4 mm	Male NPT	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C

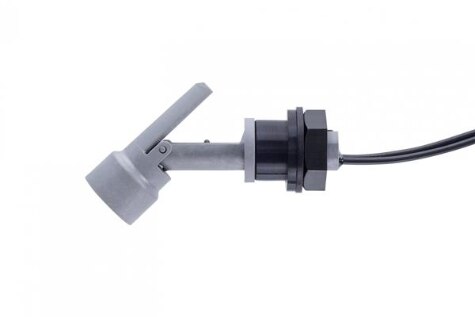

Sensata-Crydom LLF76Y100RN	120 VDC	0.7	600 mA	1 in	25.4 mm	Male NPT	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyphenylene Sulphide (PPS)	120 °C	-10 °C
Sensata-Crydom LLF77HNP	300 VDC	0.7	1 A			M12 Thread Panel Mount	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C
Sensata-Crydom LLF73HNP	300 VDC	0.7	1 A			M12 Thread Panel Mount	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Nylon

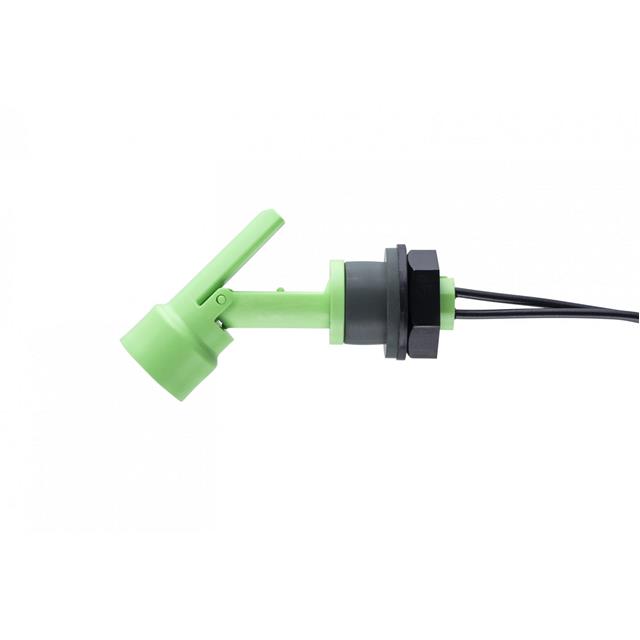

Sensata-Crydom LLF77H100GV	300 VDC	0.7	1 A	1 in	25.4 mm	Male NPT	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C

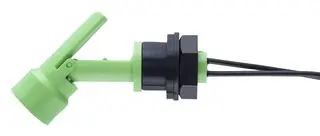

Sensata-Crydom LLF77Y100GN	120 VDC	0.7	600 mA	1 in	25.4 mm	Male NPT	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C
Sensata-Crydom LLF77HVP	300 VDC	0.7	1 A			M12 Thread Panel Mount	Switch (Single Float)	Liquid	SPST-NC/NO	0.394 in	10 mm	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C
