ANT-ELE Series

Catalog

ANTENNA SHORT 860-960MHZ MAGBASE-MNT

Part	VSWR	Antenna Type	Height (Max) [z]	Height (Max) [z]	Frequency (Center/Band)	Number of Bands	Termination	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Gain	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Height (Max) [Max] [z]	Height (Max)	Height (Max) [z]

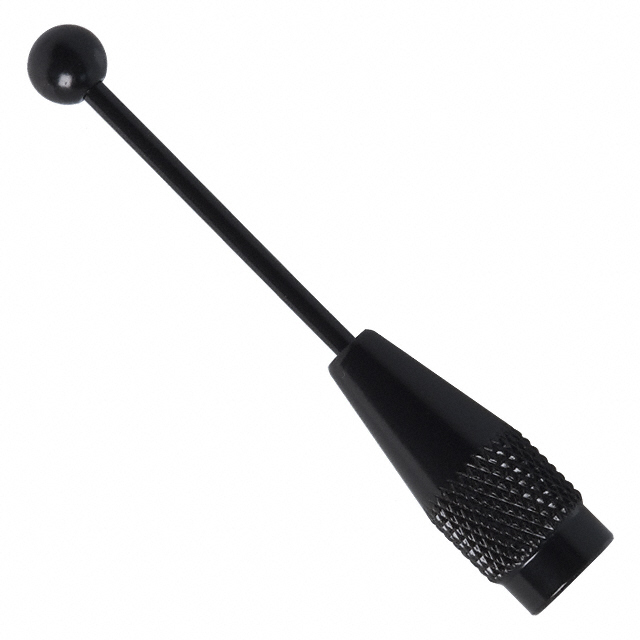

TE Connectivity AMP Connectors ANT-ELE-S01-010	1.5	Whip Straight	2.382 in	60.5 mm	1.7 GHz 1.8 GHz 1.9 GHz 800 MHz 850 MHz 900 MHz	2	M5	1.71 GHz 824 MHz	1.99 GHz 960 MHz	Magnetic	-3.9 dBi -1.5 dBi

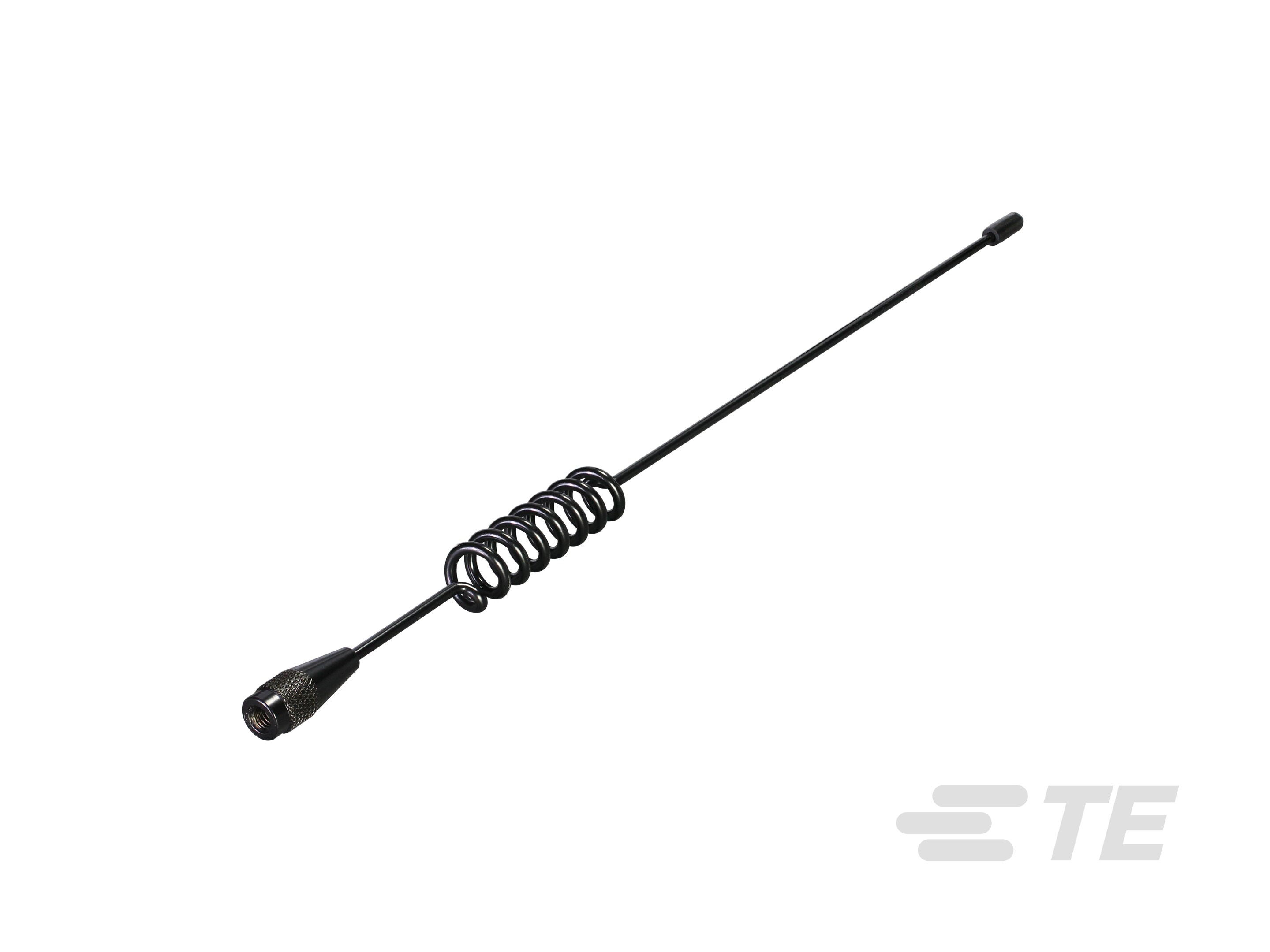

TE Connectivity AMP Connectors ANT-ELE-S01-005	1.5	Whip Straight			800 MHz 850 MHz 900 MHz	1	M5	824 MHz	960 MHz	Magnetic	3.8 dBi	1 GHz	UHF	300 MHz	11.63 in	295.4 mm
TE Connectivity AMP Connectors ANT-ELE-S01-011	2	Dome	25.91 mm		2.4 GHz	1	M5	2.4 GHz	2.5 GHz	Magnetic							1.02 in

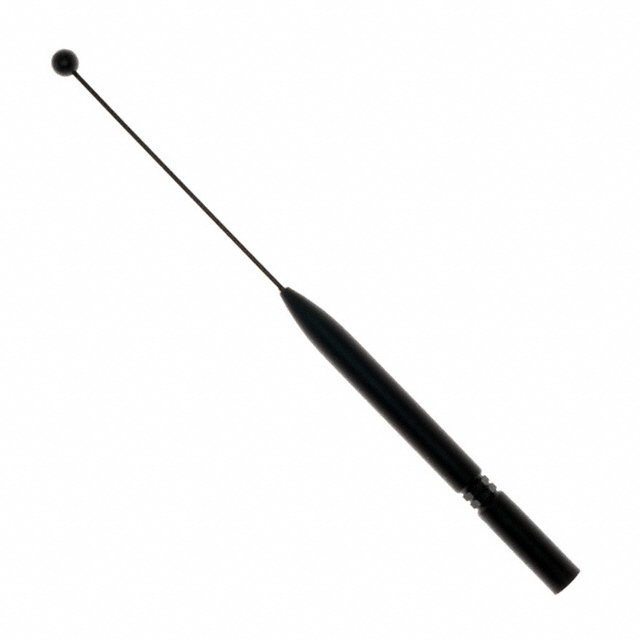

TE Connectivity AMP Connectors ANT-ELE-S01-006	1.5	Whip Straight	9.18 in	233.17 mm	1.7 GHz 1.8 GHz 800 MHz 850 MHz 900 MHz	2	M5	1.71 GHz 824 MHz	1.88 GHz 960 MHz	Magnetic	0.5 dBi 3.7 dBi

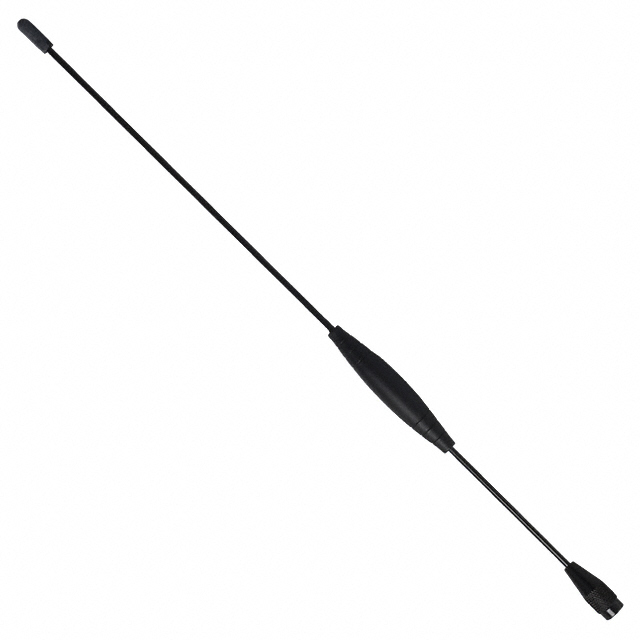

TE Connectivity AMP Connectors ANT-ELE-S01-008	2	Whip Straight	12.75 in	323.85 mm	1.7 GHz 1.8 GHz 1.9 GHz 800 MHz 850 MHz 900 MHz	2	M5	1.71 GHz 824 MHz	1.99 GHz 960 MHz	Magnetic
