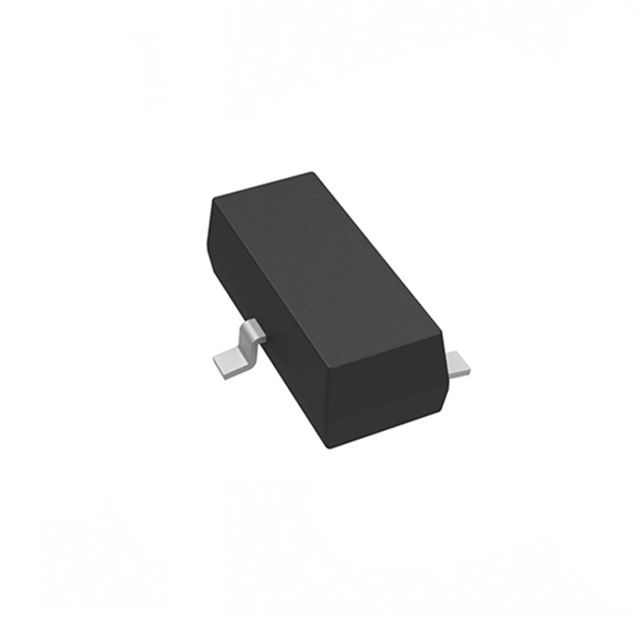

TMAG5131-Q1 Series

Automotive low-power (10 Hz, 1 µA) low-voltage (down to 1.65 V) Hall-effect switch

Catalog

Automotive low-power (10 Hz, 1 µA) low-voltage (down to 1.65 V) Hall-effect switch

Part	Sensing Range	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Max) [Max]	Polarization	Output Type	Mounting Type	Technology	Features	Current - Output (Max) [Max]	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Qualification	Package / Case	Test Condition [Min]	Test Condition [Max]
Texas Instruments TMAG5131C7DQDBZRQ1	0.5 mT 4 mT	Omnipolar Switch	5.5 V	1.65 V	2.1 µA	North Pole South Pole	Open Drain	Surface Mount	Hall Effect	Sleep Mode	5 mA	Automotive	125 °C	-40 °C	SOT-23-3	AEC-Q100	SC-59 SOT-23-3 TO-236-3	-40 °C	125 °C
Texas Instruments TMAG5131A1CQDBZRQ1	0.3 mT 2.7 mT	Omnipolar Switch	5.5 V	1.65 V	1.6 µA	North Pole South Pole	Push-Pull	Surface Mount	Hall Effect	Sleep Mode	5 mA	Automotive	125 °C	-40 °C	SOT-23-3	AEC-Q100	SC-59 SOT-23-3 TO-236-3	-40 °C	125 °C
Texas Instruments TMAG5131C1DQDBZRQ1	0.5 mT 4 mT	Omnipolar Switch	5.5 V	1.65 V	2.1 µA	North Pole South Pole	Push-Pull	Surface Mount	Hall Effect	Sleep Mode	5 mA	Automotive	125 °C	-40 °C	SOT-23-3	AEC-Q100	SC-59 SOT-23-3 TO-236-3	-40 °C	125 °C

Catalog

Automotive low-power (10 Hz, 1 µA) low-voltage (down to 1.65 V) Hall-effect switch

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAZ-axis Hall-effect switchUltra-low power consumption (typical ICC(AVG)):10Hz version: 1.25µA at 3V20Hz versions: 1.37µA at 3VOperating VCC range: 1.65V to 5.5VHigh-precision magnetic thresholds (typical BOP):1.8mT with 0.6mT hysteresis3mT with 1.2mT or 1.5mT hysteresis15mT with 6.5mT hysteresis37mT with 7mT hysteresisOmnipolar or unipolar magnetic responsePush-pull or open-drain output optionsActive-low or active-high output optionsIndustry-standard SOT-23 (DBZ) packageAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAZ-axis Hall-effect switchUltra-low power consumption (typical ICC(AVG)):10Hz version: 1.25µA at 3V20Hz versions: 1.37µA at 3VOperating VCC range: 1.65V to 5.5VHigh-precision magnetic thresholds (typical BOP):1.8mT with 0.6mT hysteresis3mT with 1.2mT or 1.5mT hysteresis15mT with 6.5mT hysteresis37mT with 7mT hysteresisOmnipolar or unipolar magnetic responsePush-pull or open-drain output optionsActive-low or active-high output optionsIndustry-standard SOT-23 (DBZ) package

Description

The TMAG5131-Q1 is a low-power, high-precision, Hall-effect sensor designed for the most compact and battery-critical automotive applications. The device is offered in multiple magnetic thresholds, sampling rates and output types to accommodate various applications. When the applied magnetic flux density exceeds the operating point (BOP) threshold, the device outputs a low voltage (for active-low versions). The output stays low until the flux density decreases to less than the release point (BRP), at which point the device outputs a high voltage. The output (low/high) behavior is inversed for active high versions. The omnipolar magnetic response allows the device output to be sensitive to positive and negative magnetic flux through the Z-axis of the package, while the unipolar version responds only to a positive magnetic flux. The TMAG5131-Q1 is internally power cycled to operate with a low current consumption. At 3V, the 10Hz version has an average current consumption of 1.25µA, and the 20Hz versions consume 1.37µA. The TMAG5131-Q1 is available in an industry-standard SOT-23 package and pin out. The device operates at a VCC range of 1.65V to 5.5V as well as an extended temperature range of –40°C to 125°C. The TMAG5131-Q1 is a low-power, high-precision, Hall-effect sensor designed for the most compact and battery-critical automotive applications. The device is offered in multiple magnetic thresholds, sampling rates and output types to accommodate various applications. When the applied magnetic flux density exceeds the operating point (BOP) threshold, the device outputs a low voltage (for active-low versions). The output stays low until the flux density decreases to less than the release point (BRP), at which point the device outputs a high voltage. The output (low/high) behavior is inversed for active high versions. The omnipolar magnetic response allows the device output to be sensitive to positive and negative magnetic flux through the Z-axis of the package, while the unipolar version responds only to a positive magnetic flux. The TMAG5131-Q1 is internally power cycled to operate with a low current consumption. At 3V, the 10Hz version has an average current consumption of 1.25µA, and the 20Hz versions consume 1.37µA. The TMAG5131-Q1 is available in an industry-standard SOT-23 package and pin out. The device operates at a VCC range of 1.65V to 5.5V as well as an extended temperature range of –40°C to 125°C.
