102161 Series

Catalog

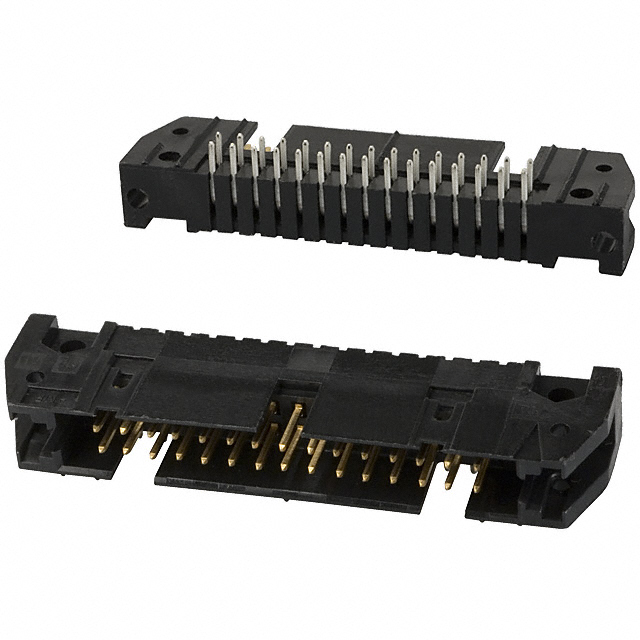

CONN HEADER R/A 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Voltage Rating	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Contact Shape	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Fastening Type	Contact Material	Current Rating (Amps)	Contact Finish - Post	Number of Rows [custom]	Number of Positions Loaded
TE Connectivity AMP Connectors 102161-7	2.54 µm	100 µin	0.1 in	2.54 mm	Male Pin	0.1 "	2.54 mm	105 ░C	-65 ░C	3.94 mm	0.155 "	Board to Cable/Wire	UL94 V-0	8 mm	0.315 in	Header	250 VAC	30	0.24 in	6.1 mm	Gold or Gold-Palladium	Square	Solder	Right Angle Through Hole	0.38 µm	15 µin	Black	Shrouded - 4 Wall	Push-Pull	Brass	1 A	Tin-Lead	2	All
