RN2910 Series

Catalog

PNPX2 BRT Q1BSR4.7KOHM Q1BERINF.

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Mounting Type	Package / Case	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Resistor - Base (R1)	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Current - Collector (Ic) (Max) [Max]

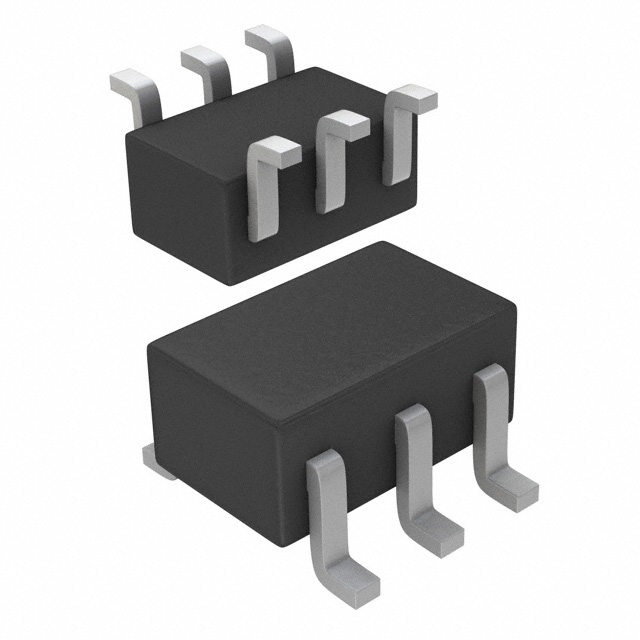

Toshiba Semiconductor and Storage RN2910,LF(CT	120	2 PNP - Pre-Biased (Dual)	100 nA	Surface Mount	SC-61AA	200 MHz	50 V	200 mW	4.7 kOhms	300 mV	SMQ	100 mA
Toshiba Semiconductor and Storage RN2910FE,LF(CT	120	2 PNP - Pre-Biased (Dual)	100 nA	Surface Mount	SOT-563 SOT-666	200 MHz	50 V	100 mW	4.7 kOhms	300 mV	ES6	100 mA
