ACS732 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K

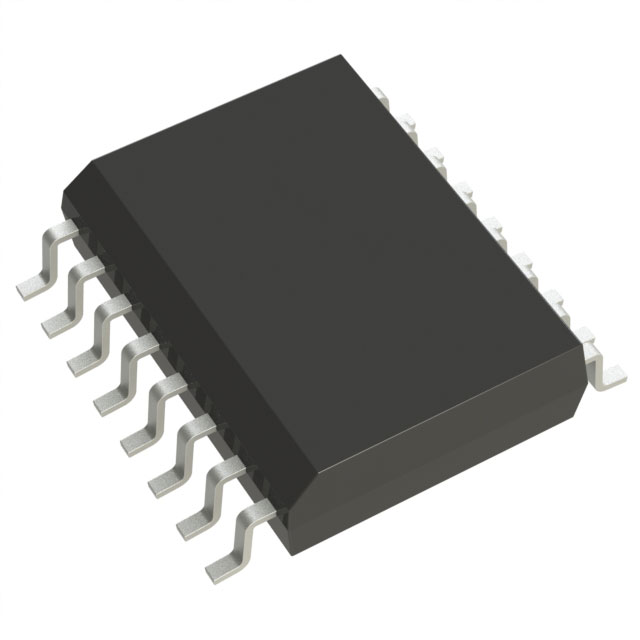

CURRENT SENSOR CURRENT SENSOR AC/DC CURRENT 5V AUTOMOTIVE AEC-Q100 16-PIN SOIC W T/R
| Part | Sensor Type | Mounting Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Frequency | Sensitivity | Response Time | Grade | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Package / Case | Package / Case | Linearity | Polarization | Current - Sensing | Number of Channels [custom] | Output | For Measuring | Accuracy | Current - Supply (Max) [Max] | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | Hall Effect | Surface Mount | 16-SOIC | 125 °C | -40 C | AEC-Q100 | 100 kHz | 30.77 mV/A | 0.3 µs | Automotive | 4.75 V | 5.25 V | 16-SOIC | 7.5 mm | 0.295 " | 0.5 % | Bidirectional | 65 A | 1 | Ratiometric Voltage | AC DC | 2.5 % | 35 mA | ||
 Allegro MicroSystems | Hall Effect Differential | Surface Mount | 16-SOIC | 125 °C | -40 C | AEC-Q100 | 60 mV/mT | 200 ns | Automotive | 4.75 V | 5.25 V | 16-SOIC | 7.5 mm | 0.295 " | 1 % | Unidirectional | 65 A | 1 | Ratiometric Voltage | DC | 2.5 % | 35 mA | 1 MHz | DC |
