DIN-Signal B Series

Manufacturer: HARTING

Catalog

SEK/IDC FLAT CABLE 64PIN, GRAY, AWG28/7, 1.27MM PITCH, UL AWM-STYLE 2651, 100 FEET (30.48METER) REEL

Part	Conductor Strand	Insulation Resistance	First Conductor Mark	Conductor Material	Current Rating (Amps)	Cable Type	Ribbon Width [custom]	Ribbon Width [custom]	Jacket (Insulation) Material	Jacket Color	Pitch	Pitch	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Length	Length	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Number of Conductors [custom]	Material Flammability Rating	Material - Insulation	Connector Type	Number of Positions Loaded	Mounting Type	Number of Positions	Style	Number of Rows [custom]	Termination	Number of Positions Loaded	Features	Contact Finish	Contact Finish Thickness	Conductor Strand [diameter]	Number of Conductors	Level, Class [custom]

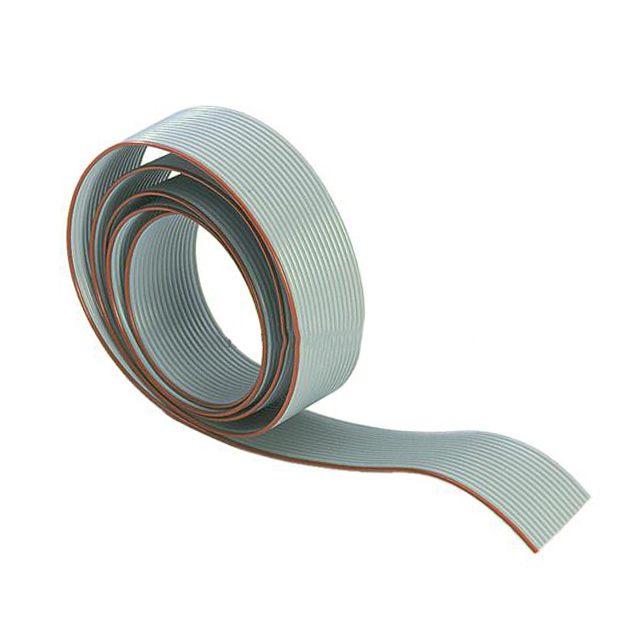

HARTING 09180647001	7 Strands 28 AWG	100 MOhms	Red	Copper Tinned	2.1 A	Flat Cable	80.94 mm	3.187 in	Poly-Vinyl Chloride (PVC)	Gray	0.05 in	1.27 mm	28 AWG	300 VDC	0.005 in	7	Unshielded	100 '	30.48 m	UL Style 2651	-20 ░C	105 ░C	0.93 mm	0.037 "	64

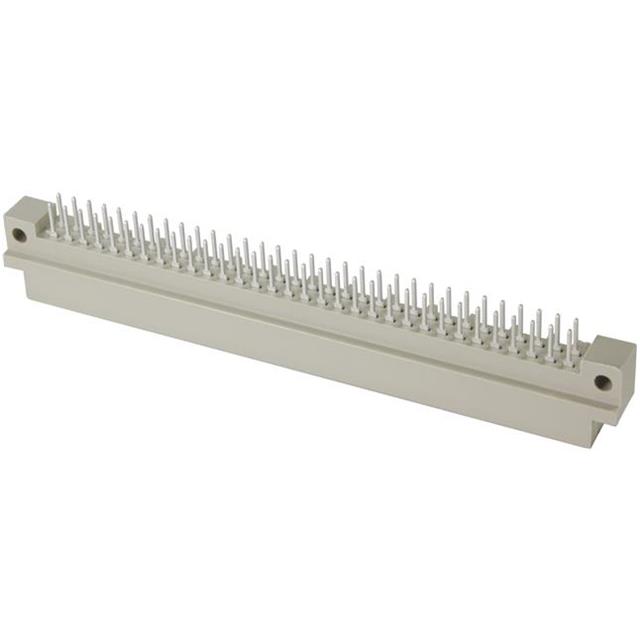

HARTING 09021326922											0.1 "	2.54 mm														UL94 V-0	Thermoplastic Glass Filled	Header Male Pins	32	Through Hole	64	B	2	Solder

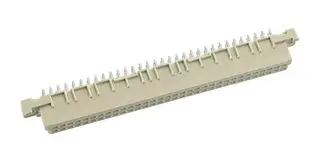

HARTING 09022646824											0.1 "	2.54 mm														UL94 V-0	Thermoplastic Glass Filled	Receptacle Female Sockets		Panel Mount Through Hole	64	B	2	Solder	All

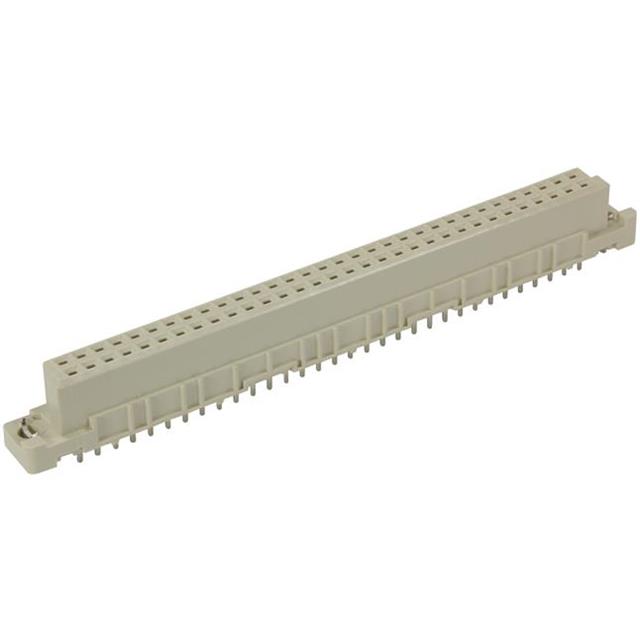

HARTING 09024646824					2 A						0.1 "	2.54 mm									-55 C	125 °C				UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets		Through Hole	64	B	2	Solder	All	Board Lock	Gold-Palladium
HARTING 09021326932											0.1 "	2.54 mm																Header Male Pins	32	Through Hole	64	B	2	Solder			Nickel-Phosphor	Flash
HARTING 09180647006	7 Strands 28 AWG	100 MOhms	Red	Copper Tinned	1 A	Flat Cable	81.94 mm	3.226 in	Poly-Vinyl Chloride (PVC)	Multiple	0.05 in	1.27 mm	28 AWG	300 VDC		7	Unshielded	100 '	30.48 m	UL Style 20130	-20 ░C	105 ░C	1.07 mm	0.042 in															0.0035 in	64

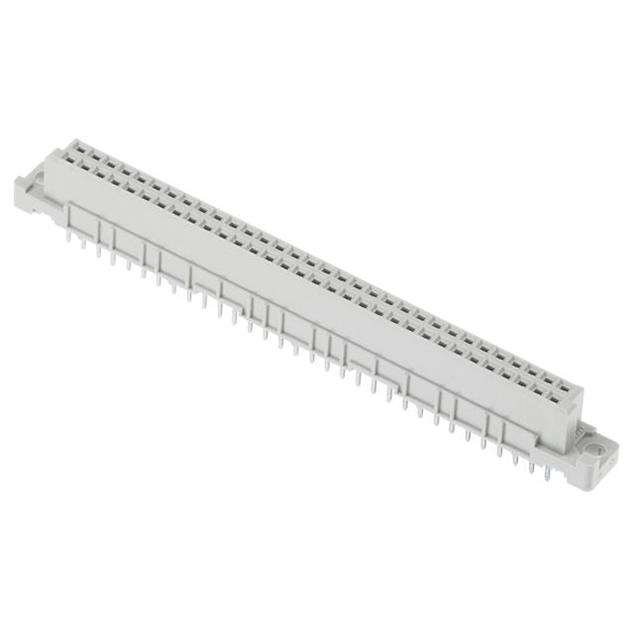

HARTING 09022646825222					2 A						0.1 "	2.54 mm									-55 C	125 °C				UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets		Through Hole	64	B	2	Solder	All		Gold-Palladium
HARTING 09021326931											0.1 "	2.54 mm														UL94 V-0	Thermoplastic Glass Filled	Header Male Pins	16 32	Right Angle Through Hole	64	B	2	Solder			Gold	Flash

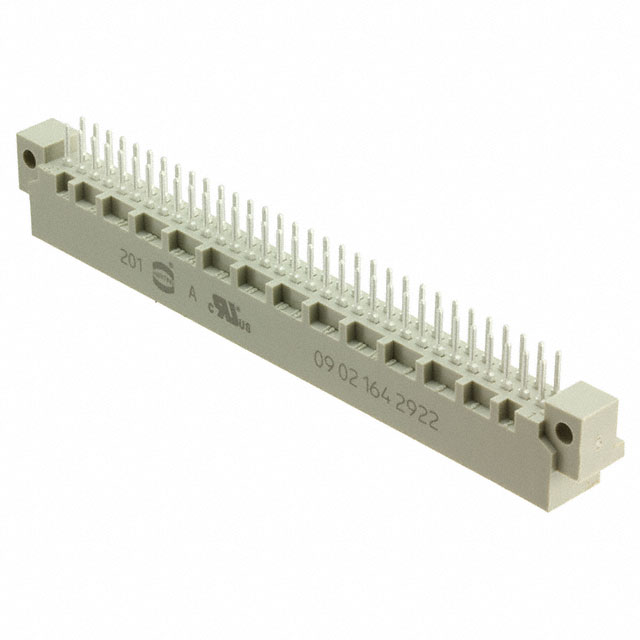

HARTING 09021642922					2 A						0.1 "	2.54 mm									-55 C	125 °C				UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Header Male Pins		Through Hole	64	B	2	Solder	All		Gold Gold-Palladium				1
