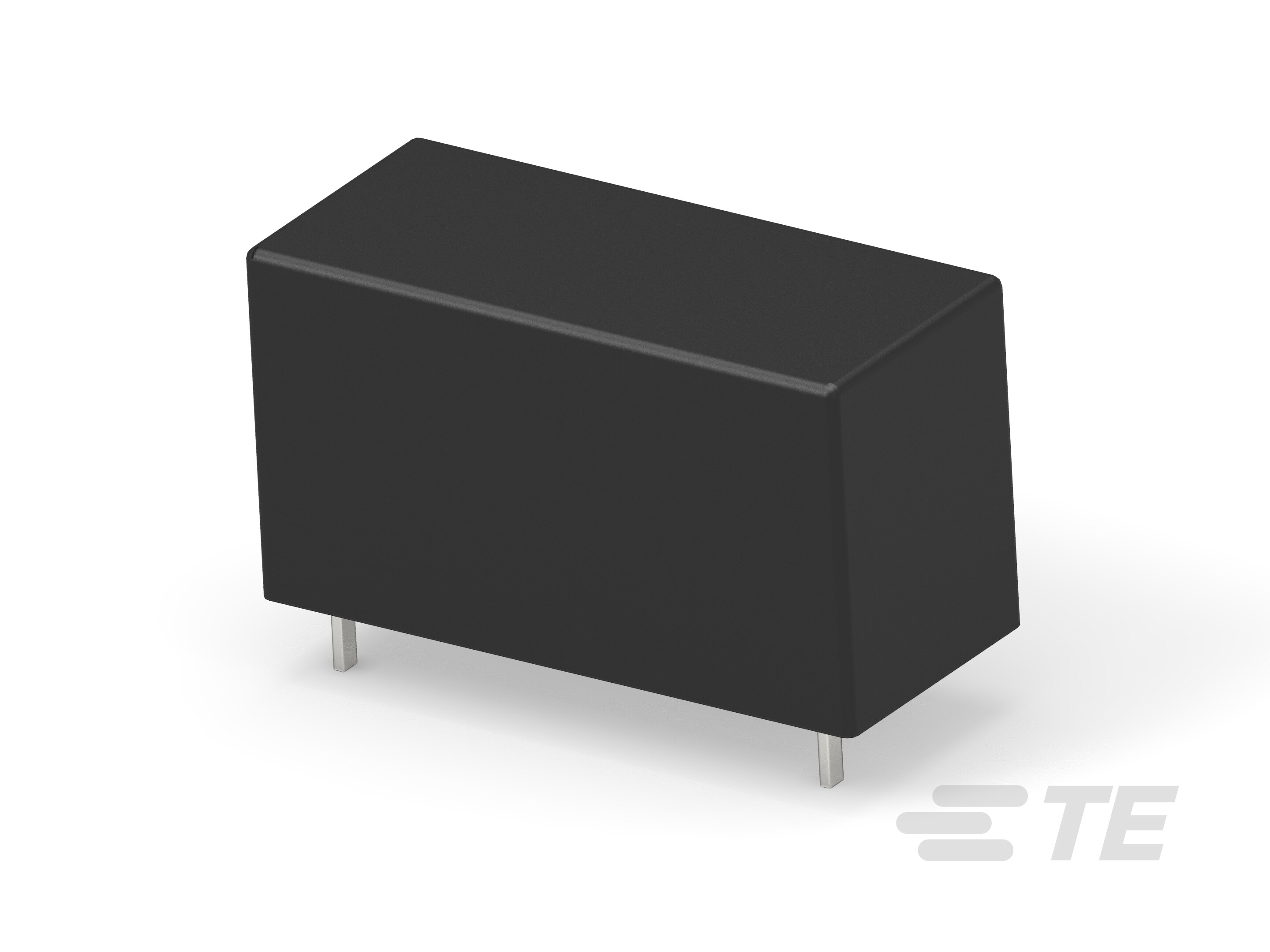

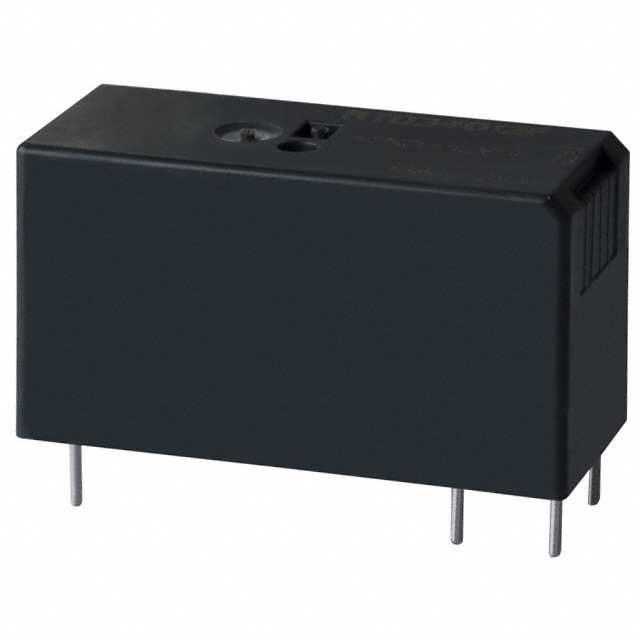

Potter & Brumfield Power PCB Relay RT1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER RELAY 24VDC 16A SPST-NO(29X12.7X15.7)MM THT
| Part | Contact Rating (Current) | Release Time | Approval Agency | Contact Material | Seal Rating | Relay Type | Contact Form | Mounting Type | Coil Insulation | Switching Voltage [Max] | Coil Type | Must Release Voltage | Load - Max Switching | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Operate Time | Must Operate Voltage | Coil Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 16 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Fully | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 2.4 VDC | 6400 VA | PC Pin | 85 °C | -40 C | 16.7 mA | 8 ms | 16.8 VDC | 24 VDC | |
 TE Connectivity AMP Connectors | 12 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPDT (1 Form C) | Through Hole | Class F | 400 VAC | Non Latching | 1.2 VDC | 4800 VA | PC Pin | 85 °C | -40 C | 33.3 mA | 8 ms | 8.4 VDC | 12 VDC | 360 Ohms |
 TE Connectivity AMP Connectors | 12 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Fully | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 1.2 VDC | 4800 VA | PC Pin | 85 °C | -40 C | 33.3 mA | 8 ms | 8.4 VDC | 12 VDC | 360 Ohms |
 TE Connectivity AMP Connectors | 12 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPDT (1 Form C) | Through Hole | Class F | 400 VAC | Non Latching | 2.4 VDC | 4800 VA | PC Pin | 85 °C | -40 C | 16.7 mA | 8 ms | 16.8 VDC | 24 VDC | 1440 Ohms |
 TE Connectivity AMP Connectors | 16 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 0.5 VDC | 6400 VA | PC Pin | 85 °C | -40 C | 80.6 mA | 8 ms | 3.5 VDC | 5 VDC | |
 TE Connectivity AMP Connectors | 12 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 1.2 VDC | 4800 VA | PC Pin | 85 °C | -40 C | 33.3 mA | 8 ms | 8.4 VDC | 12 VDC | 360 Ohms |
TE Connectivity AMP Connectors | 12 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Fully | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 0.5 VDC | 4800 VA | PC Pin | 85 °C | -40 C | 14.2 mA | 8 ms | 3.5 VDC | 5 VDC | 62 Ohms |
 TE Connectivity AMP Connectors | 16 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPDT (1 Form C) | Through Hole | Class F | 400 VAC | Non Latching | 2.4 VDC | 6400 VA | PC Pin | 85 °C | -40 C | 16.7 mA | 8 ms | 16.8 VDC | 24 VDC | |
 TE Connectivity AMP Connectors | 16 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Fully | General Purpose | SPST-NO (1 Form A) | Through Hole | Class F | 400 VAC | Non Latching | 1.2 VDC | 6400 VA | PC Pin | 85 °C | -40 C | 33.3 mA | 8 ms | 8.4 VDC | 12 VDC | 360 Ohms |
 TE Connectivity AMP Connectors | 16 A | 6 ms | CQC CSA cURus VDE | Silver Nickel (AgNi) | Sealed - Flux Protection | General Purpose | SPDT (1 Form C) | Through Hole | Class F | 400 VAC | Non Latching | 1.2 VDC | 6400 VA | PC Pin | 85 °C | -40 C | 33.3 mA | 8 ms | 8.4 VDC | 12 VDC | 360 Ohms |
