S16 Series

Catalog

RECTIFIERS 1200V 16A STD. RECOVERY

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Speed [Min]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case

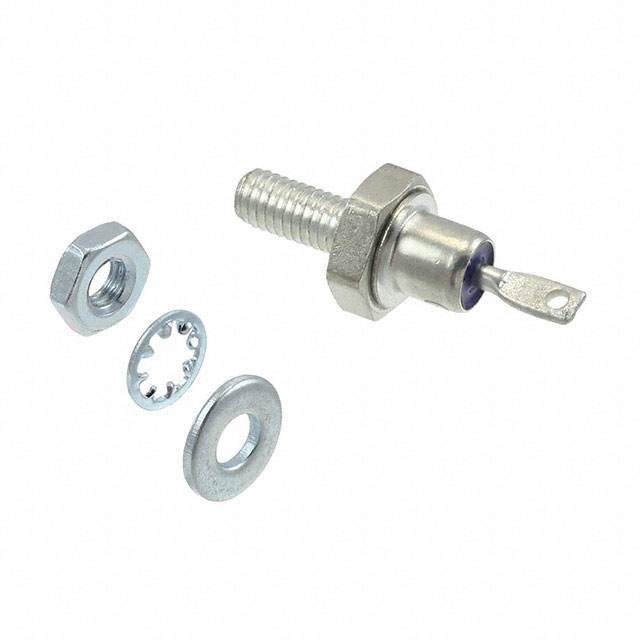

GeneSiC Semiconductor S16Q	1.1 V	200 mA 500 ns	175 ░C	-65 C	16 A	10 µA	Standard	1.2 kV	Chassis Stud Mount	DO-203AA DO-4 Stud
GeneSiC Semiconductor S16DR	1.1 V	200 mA 500 ns	175 ░C	-65 C	16 A	10 µA	Reverse Polarity Standard	200 V	Chassis Stud Mount	DO-203AA DO-4 Stud
GeneSiC Semiconductor S16QR	1.1 V	200 mA 500 ns	175 ░C	-65 C	16 A	10 µA	Reverse Polarity Standard	1.2 kV	Chassis Stud Mount	DO-203AA DO-4 Stud
