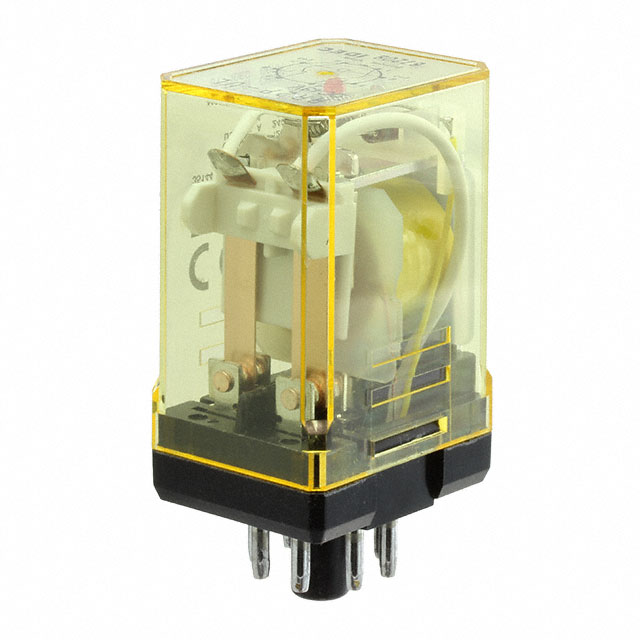

RR2P-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PLUG-IN DPDT 10A 230VAC
| Part | Coil Resistance | Coil Voltage | Operate Time | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Release Time | Must Release Voltage | Switching Voltage | Mounting Type | Contact Rating (Current) | Must Operate Voltage | Contact Material | Termination Style | Load - Max Switching | Coil Current | Approval Agency | Relay Type | Features | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 7.83 kOhms | 230 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 69 VAC | 30 VDC 240 VAC | Socketable | 10 A | 184 VAC | Silver (Ag) | Plug In | 300 W 2400 VA | 11 mA | CE CSA cURus TUV | General Purpose | ||
 IDEC | 25 Ohms | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 0.6 VDC | 30 VDC 240 VAC | Socketable | 10 A | 4.8 VDC | Silver (Ag) | Plug In | 300 W 2400 VA | 240 mA | CE CSA cURus TUV | General Purpose | |||
IDEC | 4.9 Ohms | 6 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 1.8 VAC | 30 VDC 240 VAC | Socketable | 10 A | 4.8 VAC/DC | Silver (Ag) | Plug In | 300 W 2400 VA | 420 mA | CE CSA cURus TUV | General Purpose | ||
 IDEC | 400 Ohms | 24 VDC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 2.4 VDC | 30 VDC 240 VAC | Socketable | 10 A | 19.2 VDC | Silver (Ag) | Plug In | 300 W 2400 VA | 0.06 A | CE CSA cURus TUV | General Purpose | Lighted Indicator Test Button | |
IDEC | 400 Ohms | 24 VDC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 2.4 VDC | 30 VDC 240 VAC | Socketable | 10 A | 19.2 VDC | Silver (Ag) | Plug In | 300 W 2400 VA | 0.06 A | CE CSA cURus TUV | General Purpose | ||
IDEC | 5.74 kOhms | 200 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 60 VAC/DC | 30 VDC 240 VAC | Socketable | 10 A | 160 VAC | Silver (Ag) | Plug In | 300 W 2400 VA | CE CSA cURus TUV | General Purpose | |||
IDEC | 79 Ohms | 24 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 7.2 VAC | 30 VDC 240 VAC | Socketable | 10 A | 19.2 VAC | Silver (Ag) | Plug In | 300 W 2400 VA | 105 mA | CE CSA cURus TUV | General Purpose | Lighted Indicator | |
IDEC | 7.36 kOhms | 220 VAC/DC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 66 VAC | 30 VDC 240 VAC | Socketable | 10 A | 176 VAC | Silver (Ag) | Plug In | 300 W 2400 VA | 11.5 mA | CE CSA cURus TUV | General Purpose | ||
IDEC | 79 Ohms | 24 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 7.2 VAC | 30 VDC 240 VAC | Socketable | 10 A | 19.2 VAC | Silver (Ag) | Plug In Quick Connect | 300 W 2400 VA | 105 mA | CE CSA cURus TUV | General Purpose | Test Button | 0.187 in 4.7 mm |
IDEC | 2.1 kOhms | 120 VAC | 25 ms | DPDT (2 Form C) | -25 °C | 40 °C | Non Latching | 25 ms | 36 VAC | 30 VDC 240 VAC | Socketable | 10 A | 96 VAC | Silver (Ag) | Plug In | 300 W 2400 VA | 20.5 mA | CE CSA cURus TUV | General Purpose | Lighted Indicator |
