CSI-SGFE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

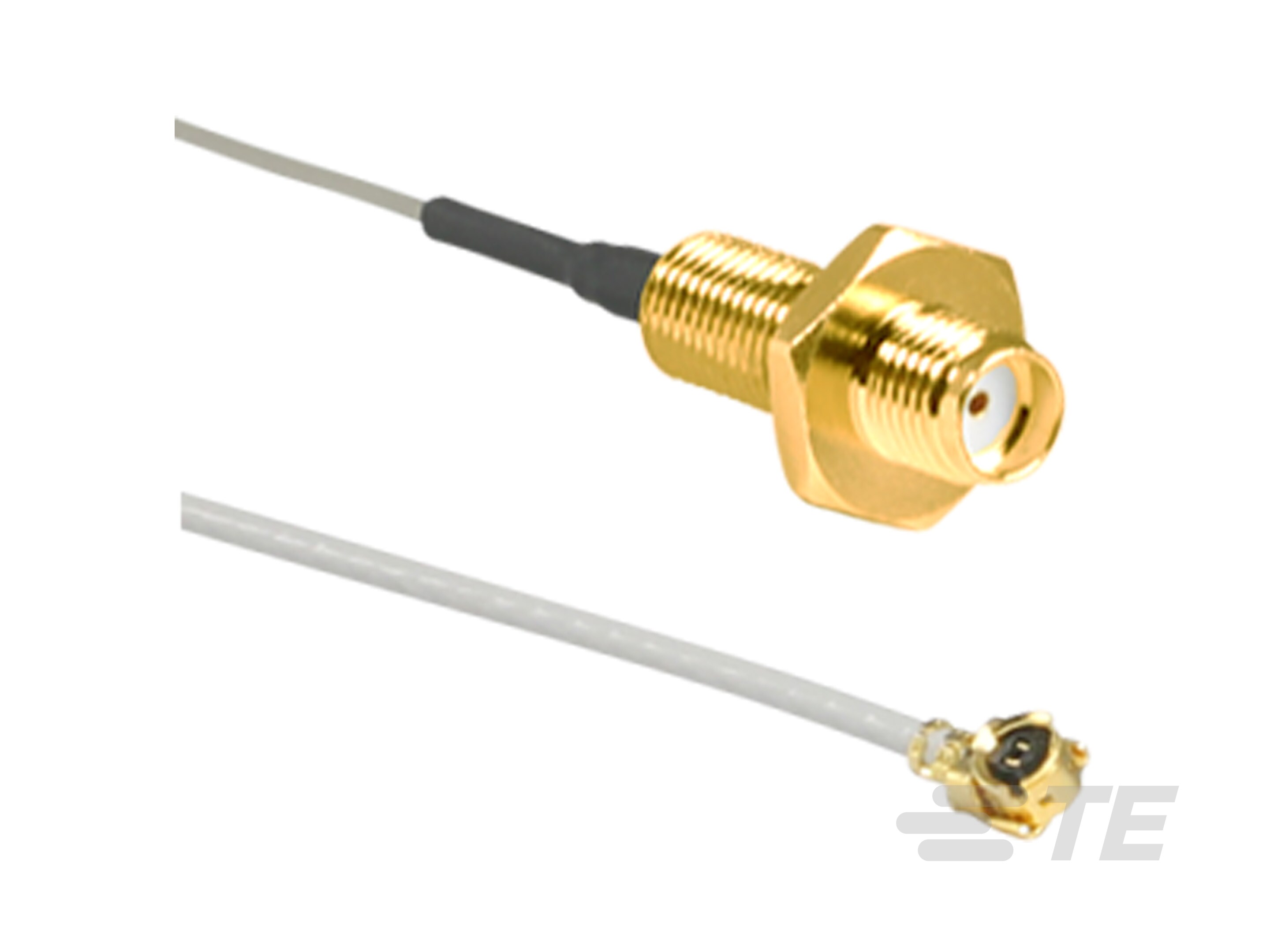

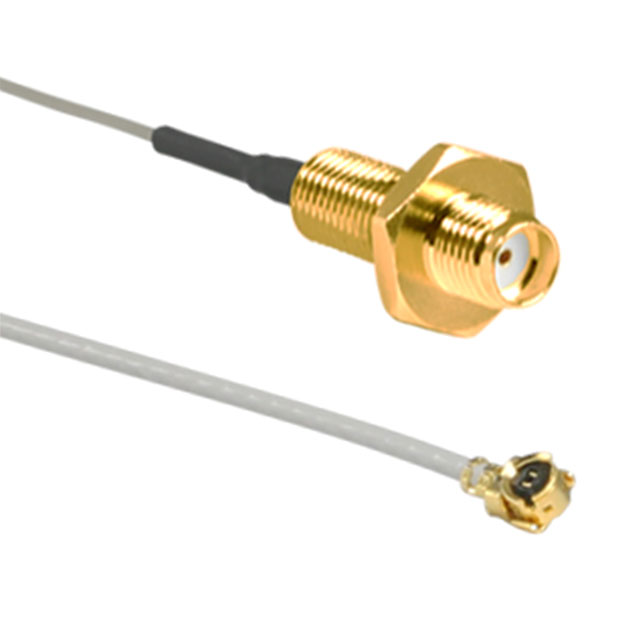

CBL ASSY U.FL-SMA JCK-PLG 3.937"

Part	1st Connector Mounting Type	Overall Impedance	Color	Cable Type	Cable Type [diameter]	1st Contact Gender	1st Connector	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Style	Length	Length	2nd Contact Gender
TE Connectivity AMP Connectors CSI-SGFE-100-UFFR-B	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	3.937 in	100 mm	Female
TE Connectivity AMP Connectors CSI-SGFE-200-UFFR	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	7.874 in	200 mm	Female
TE Connectivity AMP Connectors CSI-SGFE-300-UFFR-B	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	11.811 in	300 mm	Female
TE Connectivity AMP Connectors CSI-SGFE-200-UFFR-B	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	7.874 in	200 mm	Female
TE Connectivity AMP Connectors CSI-SGFE-300-UFFR	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	11.811 in	300 mm	Female
TE Connectivity AMP Connectors CSI-SGFE-100-UFFR	Panel Mount	50 Ohms	Gray	Coaxial Cable	1.13 mm	Female	SMA Jack	3 GHz	U.FL (UMCC) Plug Right Angle	Bulkhead - Rear Side Nut	Free Hanging (In-Line)	U.FL (UMCC) to SMA	3.937 in	100 mm	Female
