87986 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

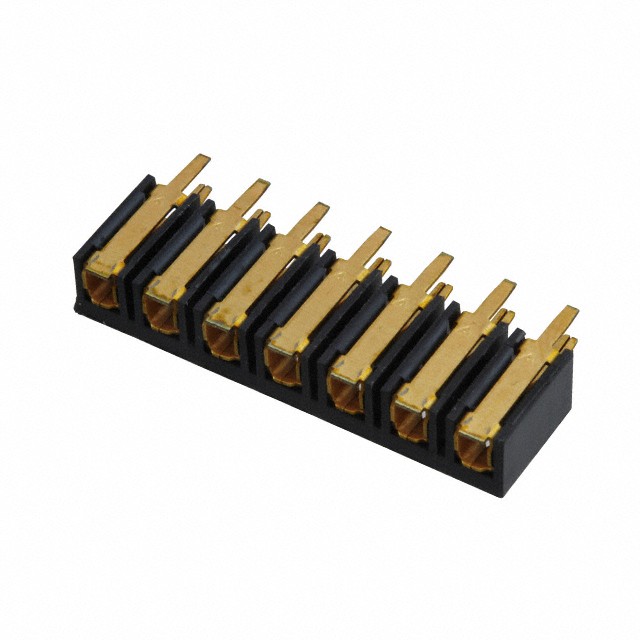

CONN RCPT 7POS 0.156 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Contact Material | Contact Type | Material Flammability Rating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Rows | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Style | Number of Positions | Fastening Type | Mounting Type | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | Flash | Square | Phosphor Bronze | Female Socket | UL94 V-0 | Receptacle | 0.76 Ám | 30 Áin | Solder | 1 | Black | 3.96 mm | 0.156 in | 7.62 mm | 0.3 in | 105 ░C | -65 ░C | Board to Board Cable | 7 | Push-Pull | Through Hole | All | 0.112 in | 2.84 mm | Gold | Gold |
