CUS150 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150W, 120 W, 85V AC TO 264V AC, FIXED

Part	Features	Power (Watts)	Voltage - Output 1	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 1	Number of Outputs	Voltage - Isolation	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [custom]
TDK Corporation CUS150M-18/B	Baseplate Standby Output Universal Input	120 W 150 W	18 V	94 %	31.5 mm	50.8 mm	1.24 "	101.6 mm	2 in	4 "	6.66 A	1	4000 V	Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-15	Standby Output Universal Input	120 W 150 W	15 V	94 %	31.5 mm	50.8 mm	1.24 "	101.6 mm	2 in	4 "	8 A	1	4000 V	Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-18/U	Standby Output Universal Input	150 W	18 V	94 %	38.5 mm	64 mm	1.52 in	116 mm	2.52 in	4.57 "	8.33 A	1	4000 V	Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-28/U	Standby Output Universal Input	150 W	28 V	94 %	38.5 mm	64 mm	1.52 in	116 mm	2.52 in	4.57 "	5.4 A	1	4000 V	Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-24/B	Baseplate Standby Output Universal Input	120 W 150 W	24 V	94 %	31.5 mm	50.8 mm	1.24 "	101.6 mm	2 in	4 "	5 A	1	4000 V	Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-28/F	Standby Output Universal Input	150 W	28 V	94 %	50.7 mm	64 mm	2 in	116 mm	2.52 in	4.57 "	5.4 A	1	4000 V	Chassis Mount	Enclosed	85 °C	-20 °C	ITE (Commercial) Medical
TDK Corporation CUS150M-12/AM	Standby Output Universal Input	150 W	12 V	94 %			1.57 "	116 mm	2.52 in	4.57 "	12.5 A	1	4000 V	Chassis Mount	Enclosed	85 °C	-20 °C	ITE (Commercial) Medical	64 mm	39.7 mm
TDK Corporation CUS150M-12	Standby Output Universal Input	120 W 150 W	12 V	94 %	31.5 mm	50.8 mm	1.24 "	101.6 mm	2 in	4 "	10 A	1		Chassis Mount	Open Frame	85 °C	-20 °C	ITE (Commercial) Medical

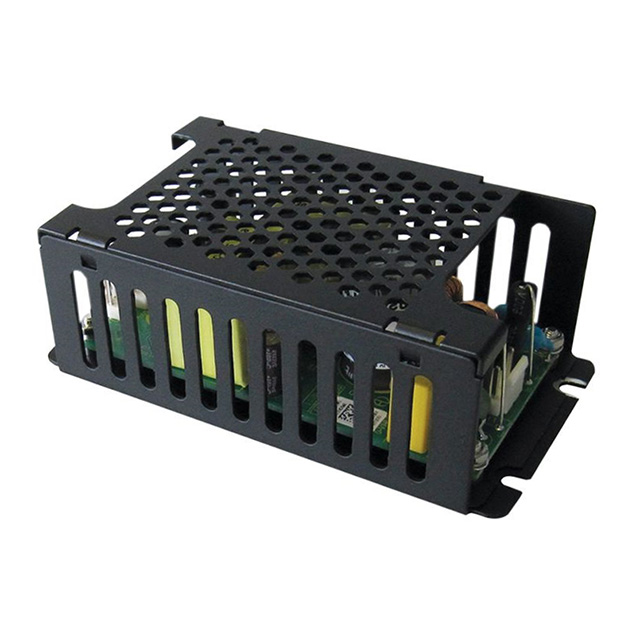

TDK Corporation CUS150M-36/A	Standby Output Universal Input	150 W		94 %			1.57 "	116 mm	2.52 in	4.57 "	4.2 A	1	4000 V	Chassis Mount	Enclosed	85 °C	-20 °C	ITE (Commercial) Medical	64 mm	39.7 mm	36 V
TDK Corporation CUS150M-12/F	Standby Output Universal Input	150 W	12 V	94 %	50.7 mm	64 mm	2 in	116 mm	2.52 in	4.57 "	12.5 A	1	4000 V	Chassis Mount	Enclosed	85 °C	-20 °C	ITE (Commercial) Medical
