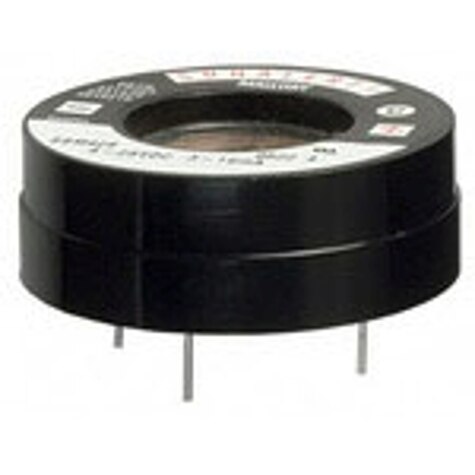

SBM Series
Manufacturer: Mallory Sonalert Products Inc.
Beta
⌘K
AUDIO INDICATOR PIEZO 1VDC 5VDC 16MA 55DBA 2400HZ TO 3400HZ THROUGH HOLE PIN BULK
| Part | Technology | Voltage Range [Max] | Voltage Range [Min] | Termination | Size / Dimension [diameter] | Size / Dimension [diameter] | Approval Agency | Driver Circuitry | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency | Operating Mode | Port Location | Sound Pressure Level (SPL) | Mounting Type | Input Type | Current - Supply [Max] | Current - Supply [Min] | Duration [Max] | Duration [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mallory Sonalert Products Inc. | Piezo | 5 VDC | 1 V | PC Pins | 42.85 mm | 1.687 in | cUL UL | Indicator Internally Driven | -30 ░C | 65 °C | 0.684 " | 17.37 mm | 2.9 kHz | Single Tone | Top | 55 dB | Through Hole | DC | ||||
 Mallory Sonalert Products Inc. | Piezo | 16 V | 6 VDC | PC Pins | 42.85 mm | 1.687 in | Indicator Internally Driven | -30 ░C | 65 °C | 0.684 " | 17.37 mm | 2.9 kHz | Fast Pulse | Top | 68 dB | Through Hole | DC | 12 mA | 3 mA | 10 PPS | 2 PPS |
