GBC19D Series

Catalog

CONN HEADER SMD 38POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Style	Fastening Type	Number of Positions Loaded	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Material	Material Flammability Rating	Current Rating (Amps)	Shrouding	Contact Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Shape	Termination	Number of Positions	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

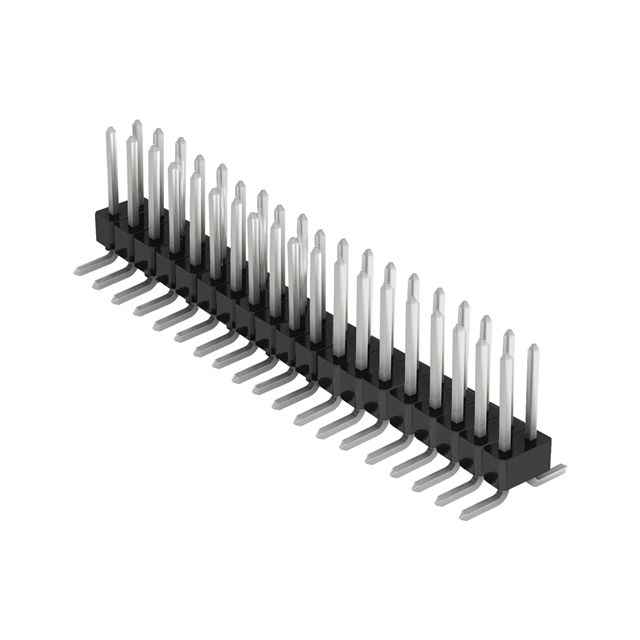

Sullins Connector Solutions GBC19DABN-M30	2.54 µm	100 µin	Gold	0.1 "	2.54 mm	Board to Board Cable	Push-Pull	All	2	150 °C	-65 ░C	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Phosphor Bronze	UL94 V-0	3 A	Unshrouded	Male Pin	Header Breakaway	0.1 in	2.54 mm	Surface Mount	Square	Solder	38	Black	Nylon 9T Polyamide (PA9T)	0.25 µm	10 µin
