TUSB1064 Series

USB Type-C® DP alt mode 10Gbps linear redriver crosspoint switch for sink side

Catalog

USB Type-C® DP alt mode 10Gbps linear redriver crosspoint switch for sink side

Part	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Signal Conditioning	Number of Channels [custom]	Delay Time	Applications	Function	Utilized IC / Part	Supplied Contents
Texas Instruments TUSB1064IRNQT	Surface Mount	Buffer ReDriver	85 °C	-40 °C	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	3.6 V	3 V	Input Equalization Output De-Emphasis	2	10 ns	USB Type C
Texas Instruments TUSB1064RNQT	Surface Mount	Buffer ReDriver	70 °C	0 °C	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	3.6 V	3 V	Input Equalization Output De-Emphasis	2	10 ns	USB Type C

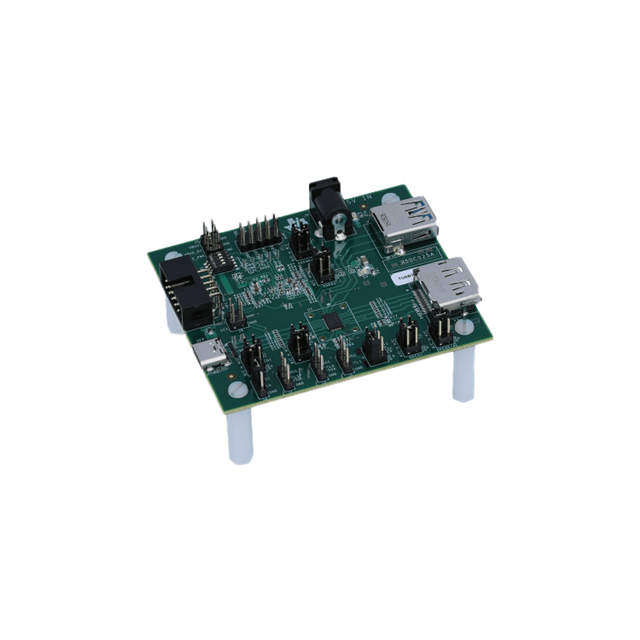

Texas Instruments TUSB1064RNQEVM		Interface												USB Type-C®	TUSB1064	Board(s)
Texas Instruments TUSB1064IRNQR	Surface Mount	Buffer ReDriver	85 °C	-40 °C	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	3.6 V	3 V	Input Equalization Output De-Emphasis	2	10 ns	USB Type C
Texas Instruments TUSB1064RNQR	Surface Mount	Buffer ReDriver	70 °C	0 °C	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	3.6 V	3 V	Input Equalization Output De-Emphasis	2	10 ns	USB Type C

Catalog

USB Type-C® DP alt mode 10Gbps linear redriver crosspoint switch for sink side

Key Features

• USB Type-C™ crosspoint switch supportingUSB 3.1 Gen 2 + 2 DP 1.4 lanes4 DP 1.4 lanesUSB 3.1 Gen 2 up to 10 GbpsDisplayPort 1.4 up to 8.1 Gbps (HBR3)VESA DisplayPort™ alt mode UFP_D redriving crosspoint switch supporting c, d, and e pin assignmentsUltra-low-power architectureLinear redriver with up to 12 dB equalizationTransparent to DisplayPort link trainingAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CHot-plug capableIndustrial temperature range: –40ºC to 85ºC (TUSB1064I)Commercial temperature range: 0ºC to 70ºC (TUSB1064)4 mm x 6 mm, 0.4 mm Pitch WQFN packageUSB Type-C™ crosspoint switch supportingUSB 3.1 Gen 2 + 2 DP 1.4 lanes4 DP 1.4 lanesUSB 3.1 Gen 2 up to 10 GbpsDisplayPort 1.4 up to 8.1 Gbps (HBR3)VESA DisplayPort™ alt mode UFP_D redriving crosspoint switch supporting c, d, and e pin assignmentsUltra-low-power architectureLinear redriver with up to 12 dB equalizationTransparent to DisplayPort link trainingAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CHot-plug capableIndustrial temperature range: –40ºC to 85ºC (TUSB1064I)Commercial temperature range: 0ºC to 70ºC (TUSB1064)4 mm x 6 mm, 0.4 mm Pitch WQFN package

Description

The TUSB1064 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 10 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard. The TUSB1064 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3-V supply and comes in a commercial temperature range and industrial temperature range. The TUSB1064 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 10 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard. The TUSB1064 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3-V supply and comes in a commercial temperature range and industrial temperature range.
