1577623 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

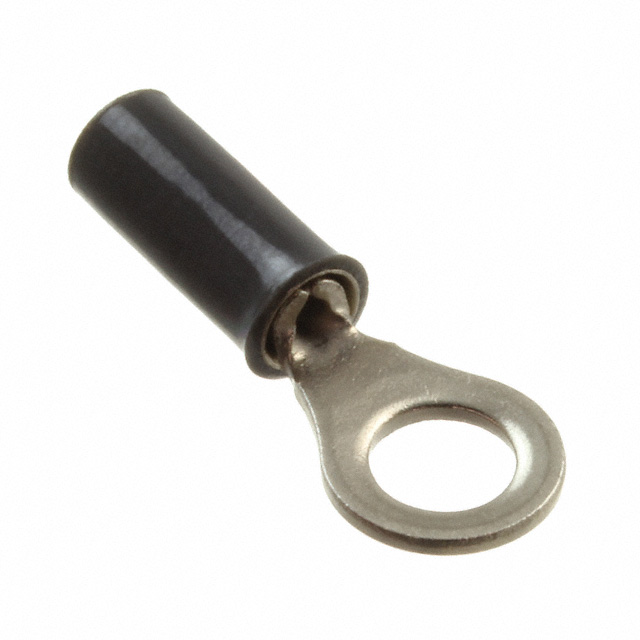

TERMINAL, PEEK PIDG STRATO, 20AWG
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Material - Insulation | Terminal Type | Contact Finish | Wire Gauge | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Insulation | Contact Material | Termination | Mounting Type | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.03 mm | 0.045 " | 1.14 mm | 0.08 " | Polymer Thermoplastic | Circular | Nickel | 20 AWG | Serrated Termination | 7.14 mm | 0.281 in | 8 Stud | Insulated | Copper | Crimp | Free Hanging (In-Line) | 0.79 mm | 0.031 in | 21.16 mm | 0.833 " | Gray |
