90204 Series

Catalog

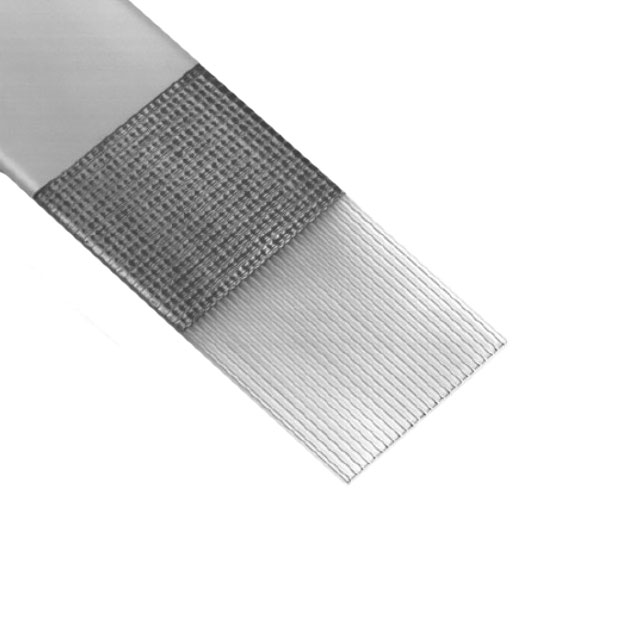

CBL RIBN 34COND 0.05 GRAY

Part	Insulation Resistance	First Conductor Mark	Conductor Material	Wire Gauge	Pitch	Pitch	Voltage	Ribbon Thickness	Ribbon Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Features	Cable Type	Ratings	Jacket Color	Shielding	Length [x]	Length [x]	Number of Conductors [custom]
3M Electronic Specialty 90204/34 100SF	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands	34	Thermoplastic Elastomer (TPE)	44.2 mm	1.74 in	-20 ░C	105 ░C	100 '	30.48 m	Splice Free	Flat Cable Flat Jacket	UL E42769	Gray	Shielded
3M Electronic Specialty 90204/50 100	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands	50	Thermoplastic Elastomer (TPE)	64.51 mm	2.54 in	-20 ░C	105 ░C	100 '	30.48 m		Flat Cable Flat Jacket	UL E42769	Gray	Shielded
3M Electronic Specialty 90204/26 100	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands	26	Thermoplastic Elastomer (TPE)	34.04 mm	1.34 in	-20 ░C	105 ░C	1 ft 25 ft 100 '	7.62 m 30.48 m 304.8 mm		Flat Cable Flat Jacket	UL E42769	Gray	Shielded	50 ft	15.24 m
3M Electronic Specialty 90204/25 100	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands		Thermoplastic Elastomer (TPE)	32.77 mm	1.29 in	-20 ░C	105 ░C	100 '	30.48 m		Flat Cable Flat Jacket	UL E42769	Gray	Shielded			25
3M Electronic Specialty 90204/64 100	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands		Thermoplastic Elastomer (TPE)	82.3 mm	3.24 in	-20 ░C	105 ░C	100 '	30.48 m		Flat Cable Flat Jacket	UL E42769	Gray	Shielded			64
3M Electronic Specialty 90204/25 100SF	10 GOhm	Blue	Copper Tinned	28 AWG	0.05 in	1.27 mm	150 V	0.07 "	1.78 mm	38 AWG	7 Strands		Thermoplastic Elastomer (TPE)	32.77 mm	1.29 in	-20 ░C	105 ░C	100 '	30.48 m	Splice Free	Flat Cable Flat Jacket	UL E42769	Gray	Shielded			25
