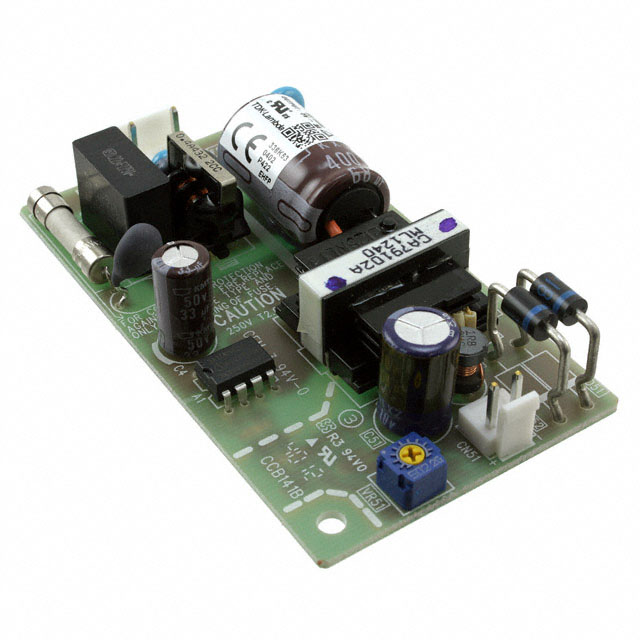

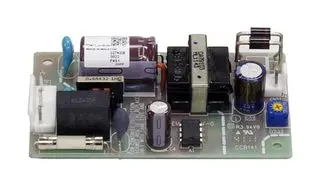

ZWS15-B Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 15 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 15 V
| Part | Features | Current - Output 1 | Efficiency | Mounting Type | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Voltage - Isolation | Voltage - Output 1 | Approval Agency | Applications | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 A | 81 % | Chassis Mount | 15 W | 21 mm | 125.2 mm | 4.93 in | 1.97 in | 50 mm | 0.83 " | 265 VAC | 85 VAC | Open Frame | 3000 V | 15 V | CE | ITE (Commercial) | 1 | 70 °C | -10 °C |
 TDK Corporation | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 3 A | 77 % | Chassis Mount | 15 W | 21 mm | 125.2 mm | 4.93 in | 1.97 in | 50 mm | 0.83 " | 265 VAC | 85 VAC | Open Frame | 3000 V | 5 V | CE | ITE (Commercial) | 1 | 70 °C | -10 °C |
