TG.42 Series

Catalog

RF ANTENNA, 2.3 TO 2.69GHZ, 3.62DBI ROHS COMPLIANT: YES

Part	Antenna Type	Frequency (Center/Band)	Number of Bands	Height (Max) [Max] [z]	Height (Max)	Ingress Protection	Gain	Applications	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	Power - Max [Max]	Mounting Type	RF Family/Standard

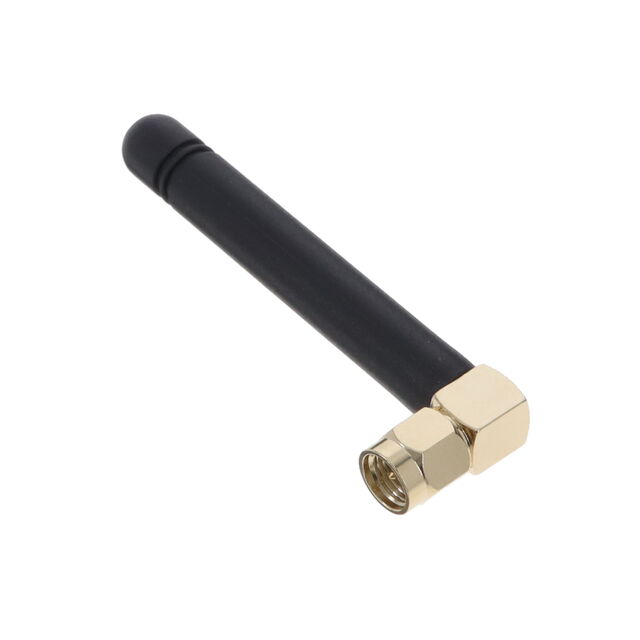

Taoglas Limited TG.42.0112	Right Angle Whip	1.795 GHz 1.92 GHz 2.045 GHz 2.495 GHz 657.5 MHz 761 MHz 892 MHz	7	2.449 in	62.2 mm	IPX5	2.1 dBi 3.29 dBi 3.3 dBi 3.56 dBi 3.6 dBi 3.62 dBi	LTE	1.88 GHz 1.99 GHz 2.17 GHz 2.69 GHz 698 MHz 824 MHz 960 MHz	1.71 GHz 1.85 GHz 1.92 GHz 2.3 GHz 617 MHz 698 MHz 824 MHz	Wide Band	5 W	Connector Mount	Cellular
