745-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Number of Positions/Bay/Row	Card Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Finish	Contact Type	Number of Rows [custom]	Color	Pitch	Pitch	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]

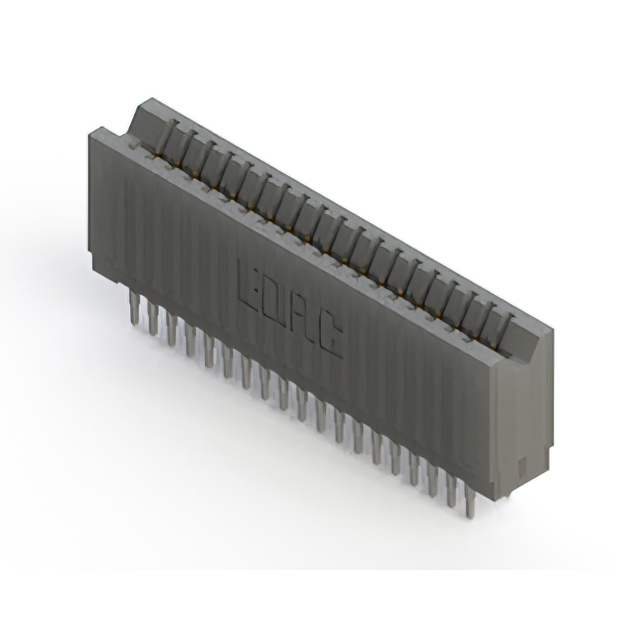

EDAC Inc. 745-038-525-206	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm

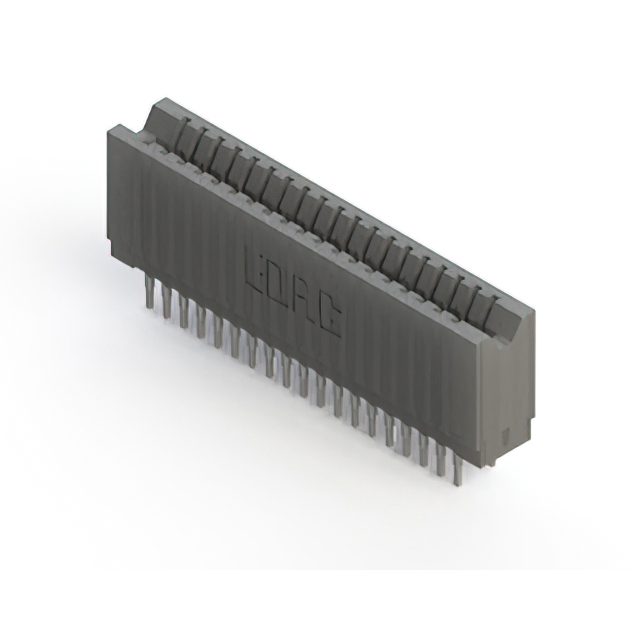

EDAC Inc. 745-038-522-206	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm
EDAC Inc. 745-038-560-206	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever Make Before Break	2	Black	0.1 "	2.54 mm
EDAC Inc. 745-038-540-106	Polyester Thermoplastic		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit Wire Wrap		Non Specified - Single Edge	Through Hole	38	30 Áin	0.76 Ám	Single	Gold	Cantilever		Black	0.1 "	2.54 mm	1	1	38
EDAC Inc. 745-038-545-106	Polyester Thermoplastic		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit		Non Specified - Single Edge	Through Hole	38	30 Áin	0.76 Ám	Single	Gold	Cantilever		Black	0.1 "	2.54 mm	1	1	38
EDAC Inc. 745-038-540-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit Wire Wrap	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm

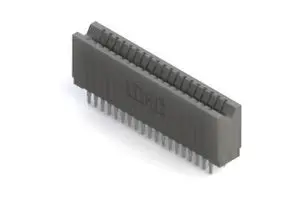

EDAC Inc. 745-038-520-206	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm
EDAC Inc. 745-038-520-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm

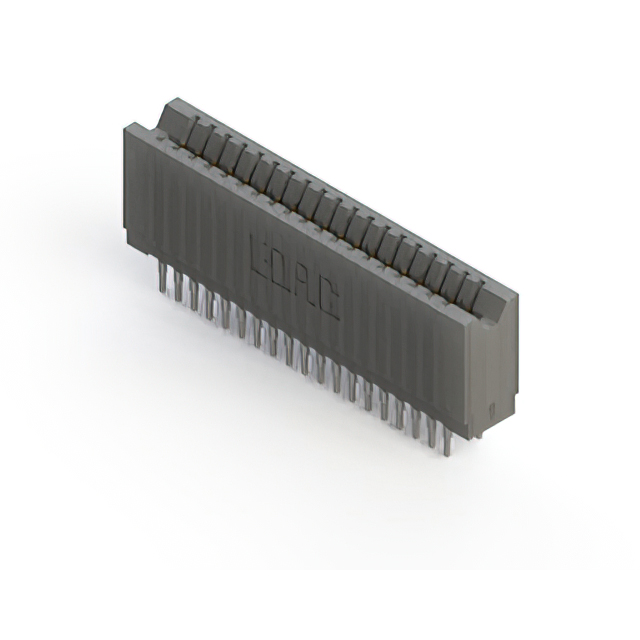

EDAC Inc. 745-038-545-206	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit	19	Non Specified - Dual Edge	Through Hole	38	30 Áin	0.76 Ám	Dual	Gold	Cantilever	2	Black	0.1 "	2.54 mm
EDAC Inc. 745-038-545-101	Polyester Thermoplastic		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Press-Fit		Non Specified - Single Edge	Through Hole	38	30 Áin	0.76 Ám	Single	Gold	Cantilever		Black	0.1 "	2.54 mm	1	1	38
