GA100 Series

Catalog

THERMISTOR NTC 100K OHM 25% 2-PIN WIRE 4261K

Part	Mounting Type	Resistance in Ohms @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Length - Lead Wire	Length - Lead Wire	B Value Tolerance	Applications	Termination Style	Pressure Type	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Output Type	Port Style	Accuracy
TE Connectivity AMP Connectors GA100K6MCD1	Free Hanging	100k	125 °C	-40 C	Bead	149 mm	5.87 in	0.5 %
TE Connectivity AMP Connectors GA100-015WD	Through Hole		80 °C	-25 °C	3-SIP Module				Board Mount	PC Pin	Differential	4.5 V	0.5 V	3.74 kPa	0.54 PSI	3.23 mm	0.13 in	Dual Male Tube	10 PSI	68.95 kPa	4.75 V	5.25 V	Amplified Output Temperature Compensated	Analog Voltage	Barbed	0.5 %

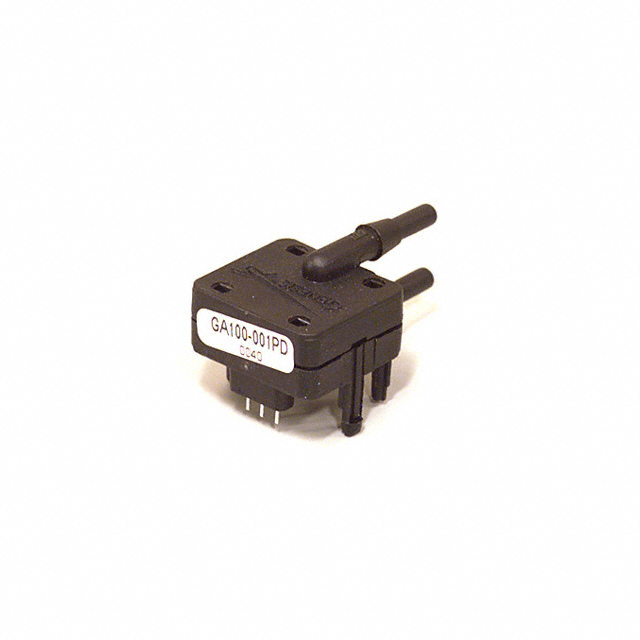

TE Connectivity AMP Connectors GA100-001PD	Through Hole		80 °C	-25 °C	3-SIP Module				Board Mount	PC Pin	Differential	4.5 V	0.5 V	6.89 kPa	1 PSI	3.23 mm	0.13 in	Dual Male Tube	10 PSI	68.95 kPa	4.75 V	5.25 V	Amplified Output Temperature Compensated	Analog Voltage	Barbed	1.5 %

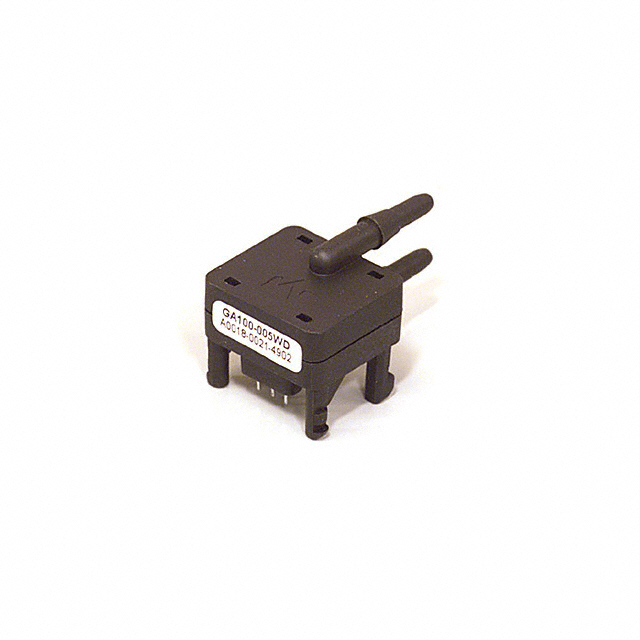

TE Connectivity AMP Connectors GA100-005WD	Through Hole		80 °C	-25 °C	3-SIP Module				Board Mount	PC Pin	Differential	4.5 V	0.5 V	1.25 kPa	0.18 PSI	3.23 mm	0.13 in	Dual Male Tube	10 PSI	68.95 kPa	4.75 V	5.25 V	Amplified Output Temperature Compensated	Analog Voltage	Barbed	0.25 %
