TPS61023 Series
Manufacturer: Texas Instruments
Beta
⌘K

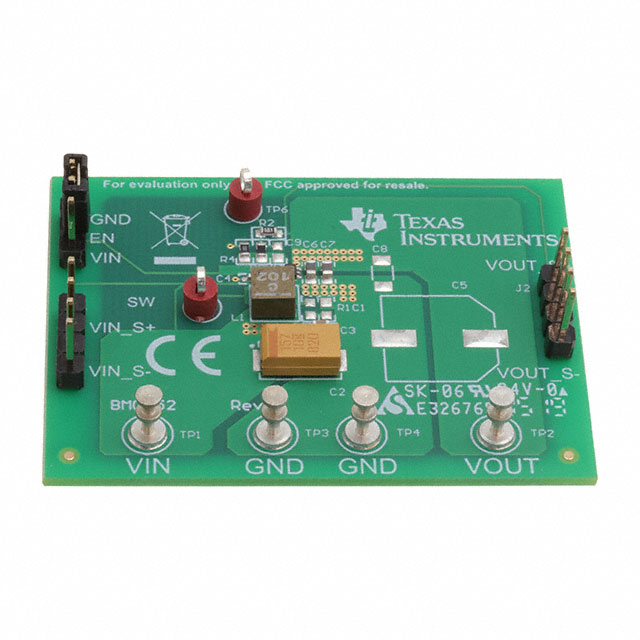

TPS61023DRL EVALUATION MODULE
| Part | Board Type | Outputs and Type | Outputs and Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Frequency - Switching | Main Purpose | Supplied Contents | Current - Output | Utilized IC / Part | Voltage - Output (Max) [Max] | Number of Outputs | Function | Synchronous Rectifier | Voltage - Input (Max) [Max] | Mounting Type | Output Type | Topology | Voltage - Input (Min) [Min] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Min/Fixed) | Supplier Device Package | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | Non-Isolated | 1 | 5 V | 5.5 V | 0.5 V | Boost | 1 MHz | DC/DC Step Up | Board(s) | 1 A 1.5 A | TPS61023 | |||||||||||||||
 Texas Instruments | 1 MHz | 3 A | 5.5 V | 1 | Step-Up | 5.5 V | Surface Mount | Adjustable | Boost | 0.5 V | SOT-563 SOT-666 | -40 °C | 125 ¯C | 2.2 V | SOT-563 | Positive |
