DAC8718 Series
Manufacturer: Texas Instruments
Beta
⌘K
OCTAL LOW-POWER 16-BIT +/-16.5V OUTPUT SERIAL INPUT DIGITAL-TO-ANALOG CONVERTER
| Part | Output Type | Differential Output | Reference Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Data Interface | Operating Temperature [Min] | Operating Temperature [Max] | INL/DNL (LSB) | Package / Case | Number of Bits | Supplier Device Package | Settling Time | Mounting Type | Number of D/A Converters | Architecture | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Utilized IC / Part | Supplied Contents | DAC Type | Number of DAC's |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Voltage - Buffered | External | 5.5 V | 2.7 V | SPI | -40 °C | 105 ░C | ±1 (Max) ±4 (Max) | 48-VFQFN Exposed Pad | 16 | 48-VQFN (7x7) | 15 µs | Surface Mount | 8 | String DAC | 18 V 36 V | -4.5 V 9 V | |||||

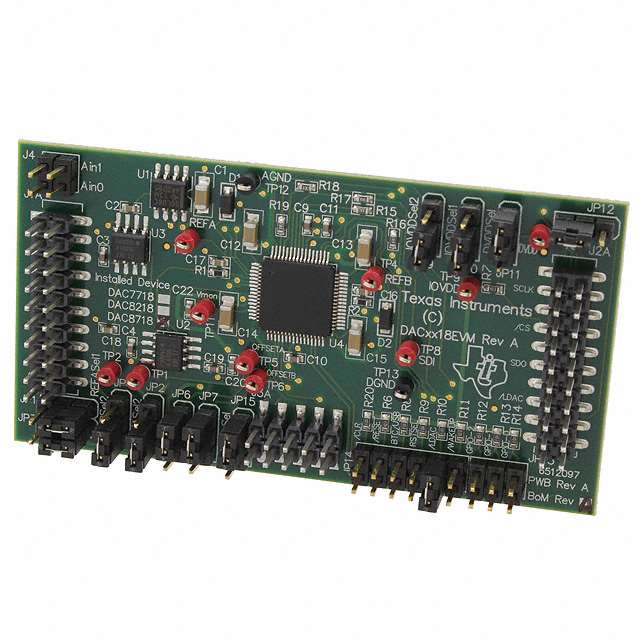

 Texas Instruments | SPI | 16 | 15 µs | DAC8718 | Board(s) | Voltage | 8 | |||||||||||||||
 Texas Instruments | Voltage - Buffered | External | 5.5 V | 2.7 V | SPI | -40 °C | 105 ░C | ±1 (Max) ±4 (Max) | 64-TQFP | 16 | 64-TQFP (10x10) | 15 µs | Surface Mount | 8 | String DAC | 18 V 36 V | -4.5 V 9 V |
