25SP-10 Series
Manufacturer: Encoder Products Company
Beta
⌘K
ENCODER ROTARY PROG 2.5" DIA 3/8
| Part | Rotational Life (Cycles Min) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Mounting Type | Pulses per Revolution | Orientation | Built in Switch | Termination Style | Detent | Actuator Type | Encoder Type | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

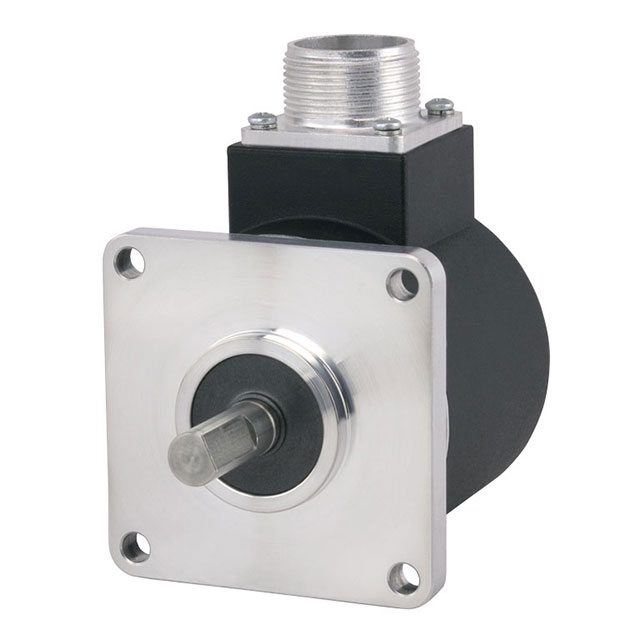

 Encoder Products Company | 1.5 B | 4.75 V | 30 VDC | Flange Mount | Programmable | User Selectable | No | PC Pin | No | Shaft | Incremental | Open Collector |

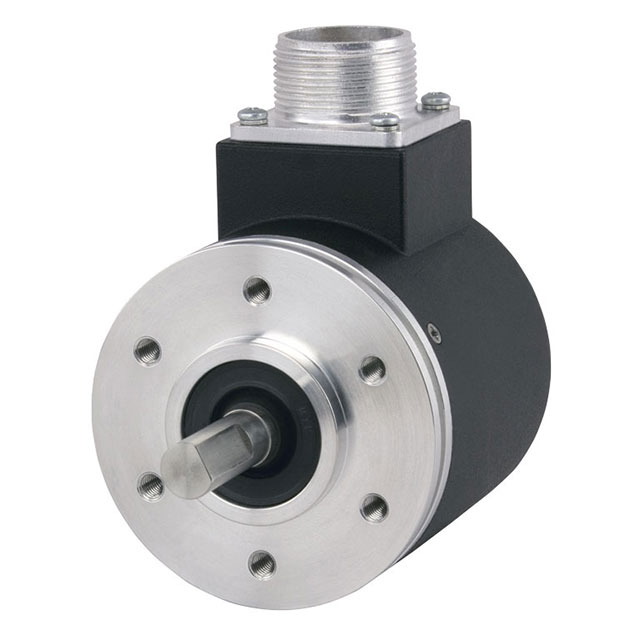

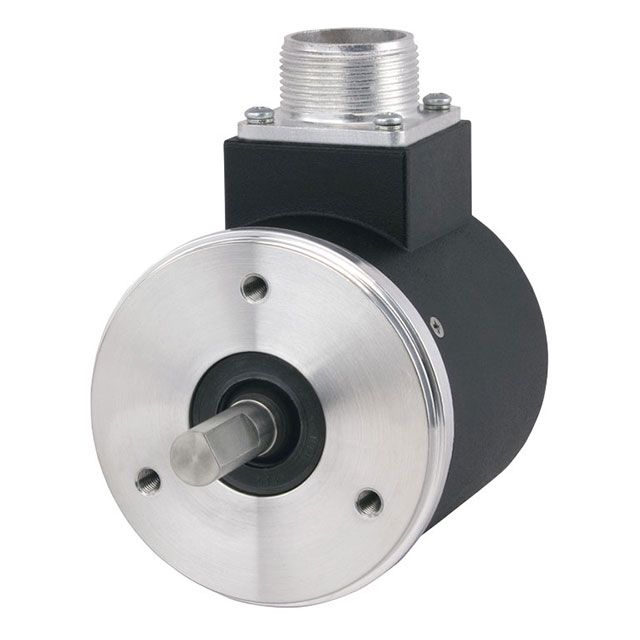

 Encoder Products Company | 1.5 B | 4.75 V | 30 VDC | Servo Mount | Programmable | User Selectable | No | PC Pin | No | Shaft | Incremental | Open Collector |
 Encoder Products Company | 1.5 B | 4.75 V | 30 VDC | Servo Mount | Programmable | User Selectable | No | PC Pin | No | Shaft | Incremental | Open Collector |
