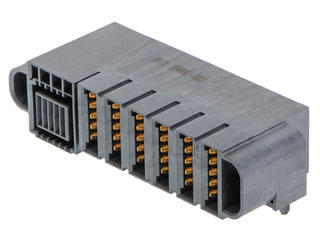

EXTreme EnergetiC Modular Right-Angle Receptacle Assembly, 31 Circuits (25 Signal/6 Power) with Solder Tail Mounting, with Guide Power to the Board Energetic RA Recept. Assy G+4P+25S+G
EXTreme EnergetiC Modular Right-Angle Receptacle Assembly, 31 Circuits (25 Signal/6 Power) with Solder Tail Mounting, with Guide Power to the Board Energetic RA Recept. Assy G+4P+25S+G
EXTreme EnergetiC Modular Right-Angle Receptacle Assembly, 31 Circuits (25 Signal/6 Power) with Solder Tail Mounting, with Guide Power to the Board Energetic RA Recept. Assy G+4P+25S+G
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions | Termination | Mounting Type | Color | Pitch [x] | Pitch [x] | Number of Rows | Contact Finish | Number of Positions Loaded | Current Rating (Amps) | Voltage Rating | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | -40 °C | 105 ░C | 25 | 4 | 0.76 Ám | 30 Áin | Blade Sockets Female Sockets Receptacle | 29 | Solder | Through Hole Right Angle | Black | 0.079 in | 2 mm | 5 | Gold | All | |||
Molex | UL94 V-0 | -40 °C | 105 ░C | 0.76 Ám | 30 Áin | Receptacle Female Blade Sockets | 4 | Solder | Through Hole Right Angle | Black | 0.301 in | 7.65 mm | 1 | Gold | All | 100 A | 600 VAC | 4 Power |
