25063 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

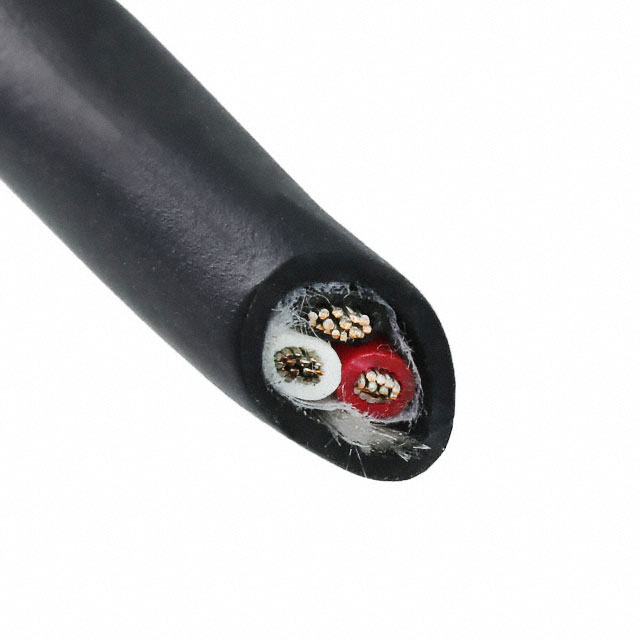

MULTICONDUCTOR CABLE, XTRA-GUARD® 2, UNSHIELDED, 3 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M
| Part | Conductor Material | Cable Type | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Voltage | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Multi-Conductor | 100 ft | 30.5 m | -30 ░C | 90 °C | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 3 | Black | Polyurethane (PU) | ISO 10993 UL Style 20668 | 0.238 " | 6.05 mm | Biological Compatibility Rip Cord | 300 VDC | 18 AWG | ||
 ALPHA WIRE | Copper Tinned | Multi-Conductor | -30 ░C | 90 °C | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 3 | Yellow | Polyurethane (PU) | ISO 10993 UL Style 20668 | 0.238 " | 6.05 mm | Biological Compatibility Rip Cord | 300 VDC | 18 AWG | 304.8 m | 1000 ft |
