FUSE 250V FA 3AB Pb-FREE 1A
Description
AI

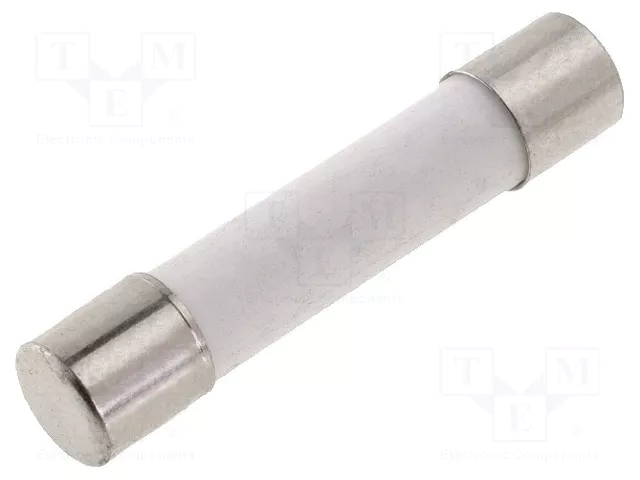

The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V FA 3AB Pb-FREE 1A
FUSE 250V FA 3AB Pb-FREE 1A
| Part | Voltage Rating - DC | Response Time | Approval Agency | Package / Case [y] | Package / Case [x] | Package / Case | Melting I²t | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Breaking Capacity @ Rated Voltage | Fuse Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 125 VDC | Fast Blow | CE CSA PSE UL | 0.25 in | 3AB 3AG | 0.69 | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | 10 kA 100 A | Cartridge Ceramic | 1 A | -55 C | 125 °C | 250 V | ||
LITTELFUSE | 125 VDC | Fast Blow | CE CSA PSE UL | 0.25 in | 3AB 3AG | 0.69 | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | 10 kA 100 A | Cartridge Ceramic | 1 A | -55 C | 125 °C | 250 V | 0.189 Ohms | |
LITTELFUSE | 125 VDC | Fast Blow | CE CSA PSE UL | 0.25 in | 3AB 3AG | 0.69 | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | 10 kA 100 A | Cartridge Ceramic | 1 A | -55 C | 125 °C | 250 V | 0.189 Ohms |
