DFK-IPC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 8 POS 10.16MM PITCH FEED THRU INVERT HDR

Part	Rear Panel Wire Connection	Current - UL	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Color	Front Panel Wire Connection	Panel Mount Type	Number of Levels	Features	Width [x]	Width [x]	Pitch	Pitch	Positions Per Level	Type	For Use With/Related Products	Wire Gauge [Min]	Wire Gauge [Max]	Positions Per Level [custom]	Width	Width
Phoenix Contact 1702798	PCB Pins - Right Angle	5 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock - Front Flange	1	Shield Connection Front Side Threaded Mating Lock	4.817 in	122.36 mm	10.16 mm	0.4 in	8
Phoenix Contact 1703166																	Screw Set	COMBICON DFK-IPC Series

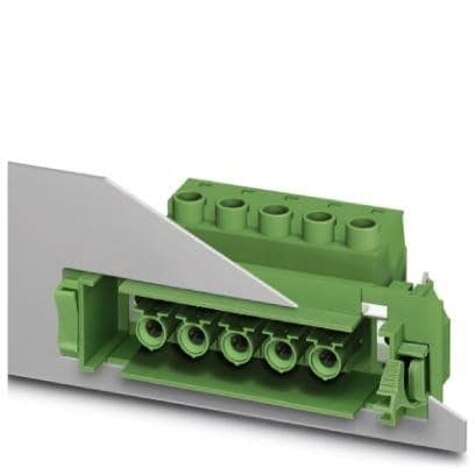

Phoenix Contact 1703975	PCB Pins - Right Angle	55 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock - Front Flange	1	Shield Connection Feedthrough Threaded Mating Lock	4.017 in	102.03 mm	10.16 mm	0.4 in	6			6 AWG	20 AWG
Phoenix Contact 1702468	PCB Pins - Right Angle	5 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock	1		3.75 in	95.24 mm	10.16 mm	0.4 in						7
Phoenix Contact 1703962	PCB Pins - Right Angle	55 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock - Front Flange	1	Shield Connection Feedthrough Threaded Mating Lock			10.16 mm	0.4 in	5			6 AWG	20 AWG		3.617 in	91.88 mm
Phoenix Contact 1702769	PCB Pins - Right Angle	5 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock - Front Flange	1	Shield Connection Front Side Threaded Mating Lock			10.16 mm	0.4 in	5						3.617 in	91.88 mm
Phoenix Contact 1703700	Bolt/Screw Clamp - Wire Entry 90° to Panel	55 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock	1				10.16 mm	0.4 in	3			6 AWG	20 AWG		2.15 in	54.6 mm
Phoenix Contact 1702992	PCB Pins - Right Angle	5 A	1 mm	3 mm	0.118 in	0.039 in	Green	Header Female Sockets	2 Piece Snap Lock - Front Flange	1	Shield Connection Feedthrough Threaded Mating Lock	3.217 "	81.72 mm	10.16 mm	0.4 in	4
