FDLL485B Series

Small Signal Diode

Catalog

Small Signal Diode

Part	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F
ON Semiconductor FDLL485B	200 mA	Standard	180 V	Surface Mount	DO-213AC MINI-MELF SOD-80	SOD-80	200 C	-65 C	Any Speed	200 mA	1 V	6 pF

Catalog

Small Signal Diode

Description

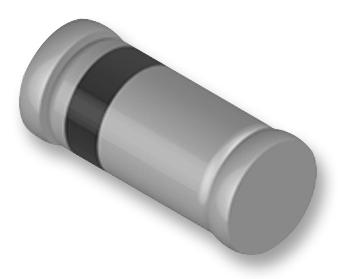

A General Purpose diode that couples high forward conductance fast switching speed and high blocking voltages in a glass leadless LL-34 Surface Mount package. Placement of the Expansion Gap has no relationship to the location of the Cathode Terminal which is indicated by the first color band.
