855-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

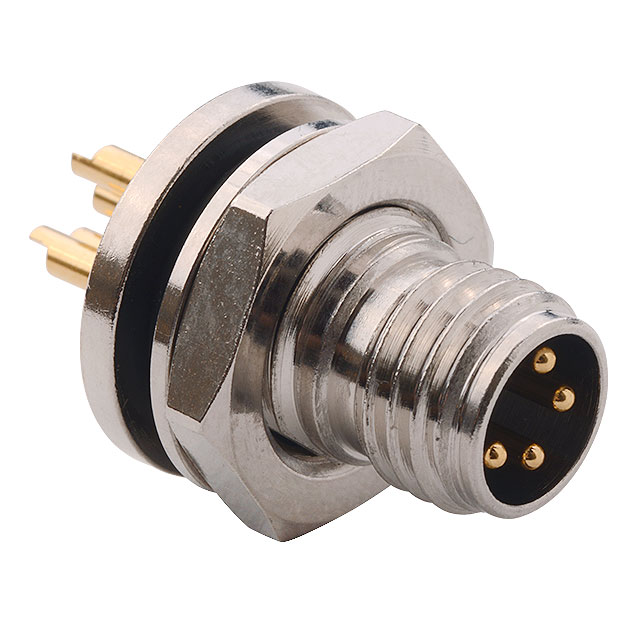

SENSOR CONNECTOR, IP67, PANEL, VULCON SERIES, M8, MALE, 4 POSITIONS, SOLDER PIN
| Part | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Voltage Rating | Contact Finish - Mating | Primary Material | Shell Material | Mounting Feature | Number of Positions | Color | Current Rating (Amps) | Material Flammability Rating | Connector Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Ingress Protection | Fastening Type | Shell Size - Insert | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Industrial Medical | 0.25 µm | 10 µin | Brass | Polybutylene Terephthalate (PBT) | 60 VDC | Gold | Metal | Brass | Bulkhead - Front Side Nut | 4 | Silver | 3 A | UL94 V-0 | Receptacle Male Pins | Nickel | 85 °C | -40 C | Panel Mount | IP67 - Dust Tight Waterproof | Threaded | M8-4 | |
 NorComp Inc. | Industrial Medical | Brass | Polybutylene Terephthalate (PBT) | 60 VDC | Gold | Metal | Brass | Bulkhead - Front Side Nut | 4 | Silver | 3 A | UL94 V-0 | Receptacle Male Pins | Nickel | 85 °C | -40 C | Panel Mount | IP67 - Dust Tight Waterproof | Threaded | M8-4 | Flash |
