3010-14 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Fastening Type	Connector Type	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Number of Positions	Features	Contact Finish - Mating	Style	Contact Type	Mounting Type	Voltage Rating	Shrouding	Contact Finish Thickness - Mating	Number of Rows [custom]	Material Flammability Rating	Termination	Contact Material	Insulation Height [z]	Contact Finish Thickness	Pitch	Pitch	Contact Finish	Cable Termination	Row Spacing	Row Spacing	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

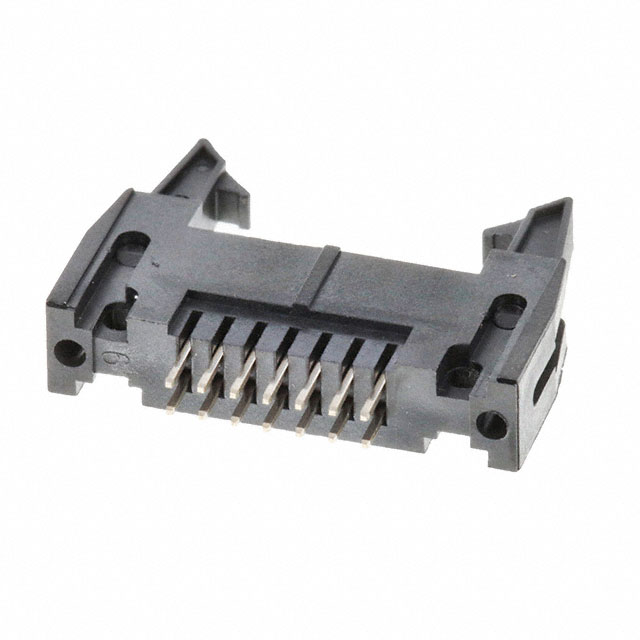

CNC Tech 3010-14-001-13-00	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm	0.134 "	3.4 mm	-40 C	105 ░C	All	Latch Lock/Eject Hooks Long	Header	3 A	Square	17 mm	0.669 in	14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Through Hole	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass
CNC Tech 3010-14-003-12-00	Nylon 9T Polyamide (PA9T)	0.1 in	2.54 mm	0.1 "	2.54 mm			-40 C	105 ░C	All	Latch Lock/Eject Hooks	Header	3 A	Square	17 mm	0.669 in	14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Surface Mount	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass

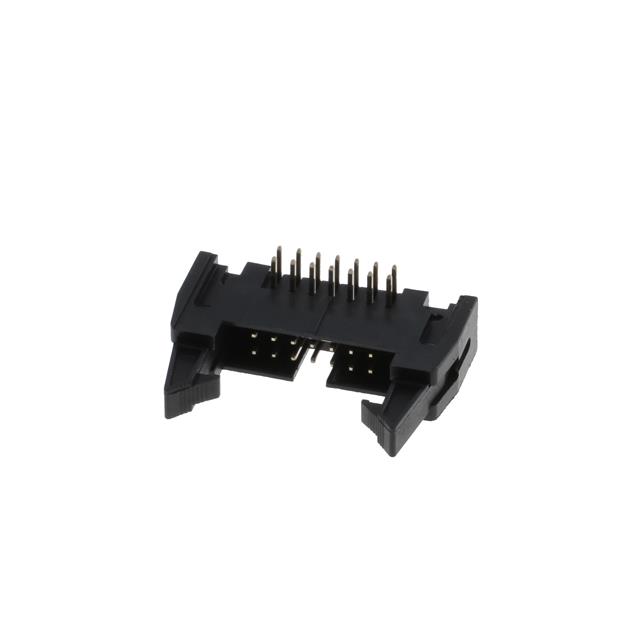

CNC Tech 3010-14-002-13-00	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm	0.134 "	3.4 mm	-40 C	105 ░C	All	Latch Lock/Eject Hooks Long	Header	3 A	Square	8.3 mm		14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Right Angle Through Hole	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass	0.327 "

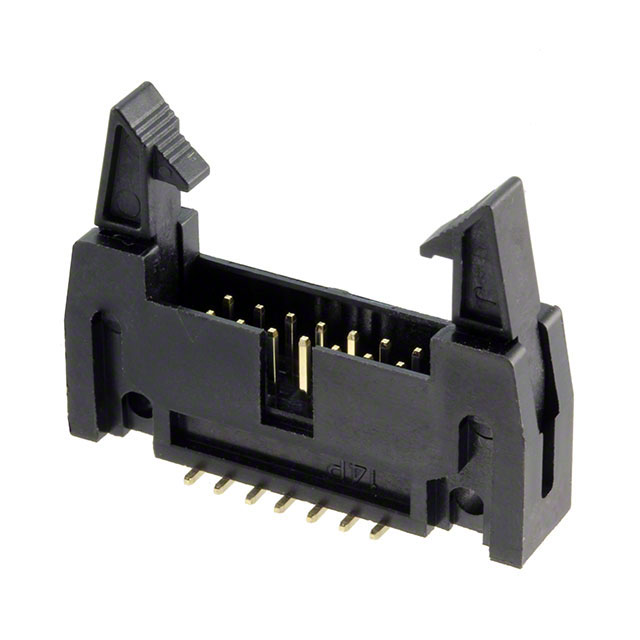

CNC Tech 3010-14-003-13-00	Nylon 9T Polyamide (PA9T)	0.1 in	2.54 mm	0.1 "	2.54 mm			-40 C	105 ░C	All	Latch Lock/Eject Hooks Long	Header	3 A	Square	17 mm	0.669 in	14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Surface Mount	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass
CNC Tech 3010-14-041-11-00											Push-Pull	Header					14	Polarizing Key			Male Pin	Free Hanging (In-Line)				2					Flash	0.1 "	2.54 mm	Gold	IDC	2.54 mm	0.1 "

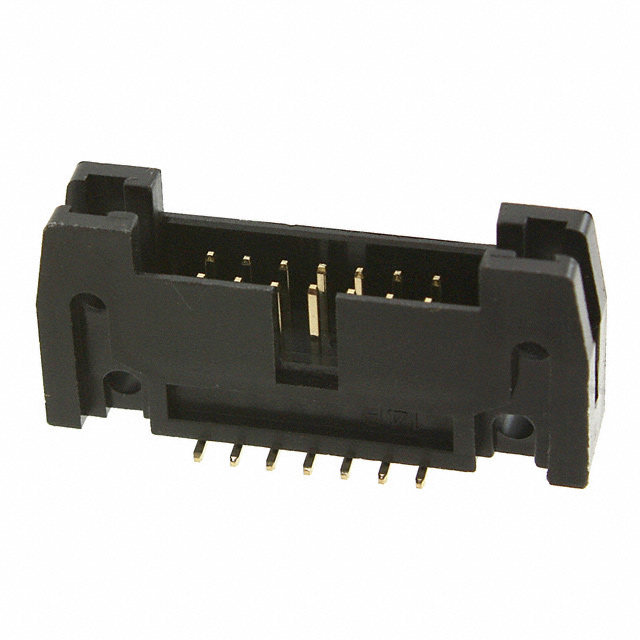

CNC Tech 3010-14-003-11-00	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm			-40 C	105 ░C	All	Push-Pull	Header		Square	17 mm	0.669 in	14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Surface Mount		Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass

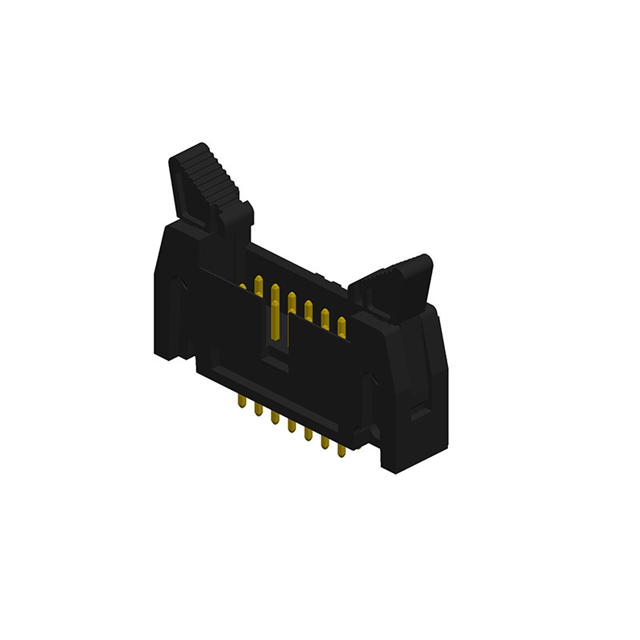

CNC Tech 3010-14-001-12-00	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm	0.134 "	3.4 mm	-40 C	105 ░C	All	Latch Lock/Eject Hooks	Header	3 A	Square	17 mm	0.669 in	14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Through Hole	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass

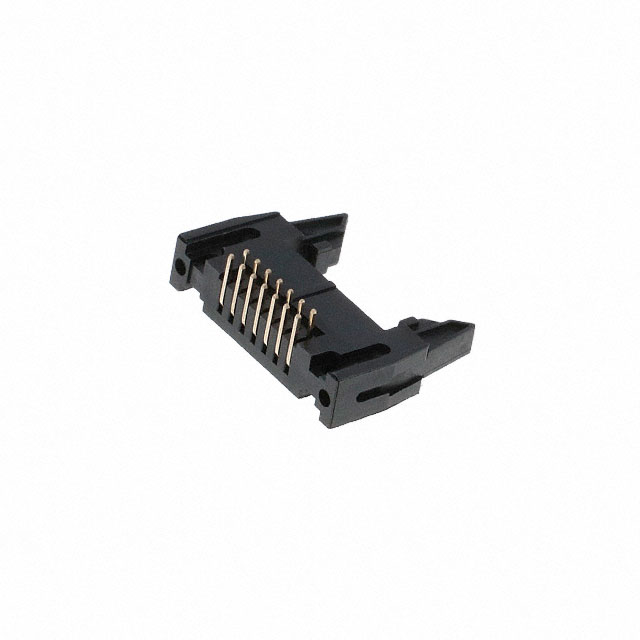

CNC Tech 3010-14-002-12-00	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm	0.134 "	3.4 mm	-40 C	105 ░C	All	Latch Lock/Eject Hooks	Header	3 A	Square	8.3 mm		14	Keying Slot	Gold	Board to Cable/Wire	Male Pin	Right Angle Through Hole	250 VAC	Shrouded - 4 Wall	Flash	2	UL94 V-0	Solder	Brass	0.327 "
CNC Tech 3010-14-002-13-99	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	0.1 "	2.54 mm	0.134 "	3.4 mm	-40 C	105 ░C	All	Latch Lock/Eject Hooks Long	Header		Square	8.3 mm		14	Keying Slot		Board to Cable/Wire	Male Pin	Right Angle Through Hole		Shrouded - 4 Wall		2	UL94 V-0	Solder	Brass	0.327 "								2.03 µm	80 µin
