PET800 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

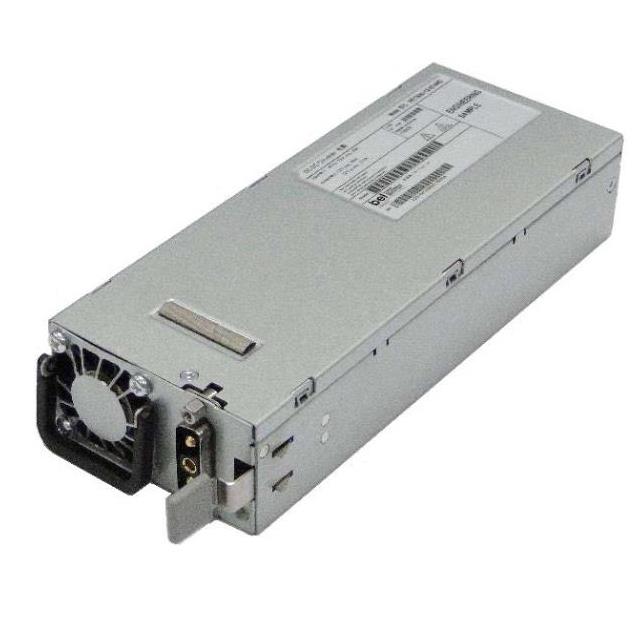

DC/DC CONVERTER 12V 800W
| Part | Approval Agency | Voltage - Input (Max) [Max] | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Number of Outputs | Power (Watts) | Current - Output (Max) [Max] | Mounting Type | Voltage - Output 1 | Applications | Efficiency | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | CE NEMKO | -72 V | Front End | 1.54 in | 185 mm | 2.89 " | 39 mm | 73.5 mm | 7.28 in | -40 V | 50 °C | 0 °C | 1.414 kV | 1 | 800 W | 65 A | Rack Mount | 12 V | ITE (Commercial) | 94 % | ||||
 Bel Fuse Inc. | CB CE | Front End | 1.54 in | 185 mm | 2.89 " | 39 mm | 73.5 mm | 7.28 in | 50 °C | 0 °C | 1 | 800 W | Rack Mount | 12 V | ITE (Commercial) | 91 % | 65 A | 264 VAC | 90 VAC | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input | ||||
 Bel Fuse Inc. | CE | Front End | 1.54 in | 185 mm | 2.89 " | 39 mm | 73.5 mm | 7.28 in | 50 °C | 0 °C | 1 | 800 W | Rack Mount | 12 V | ITE (Commercial) | 93 % | 65 A | 264 VAC | 90 VAC | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input |
