2507-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

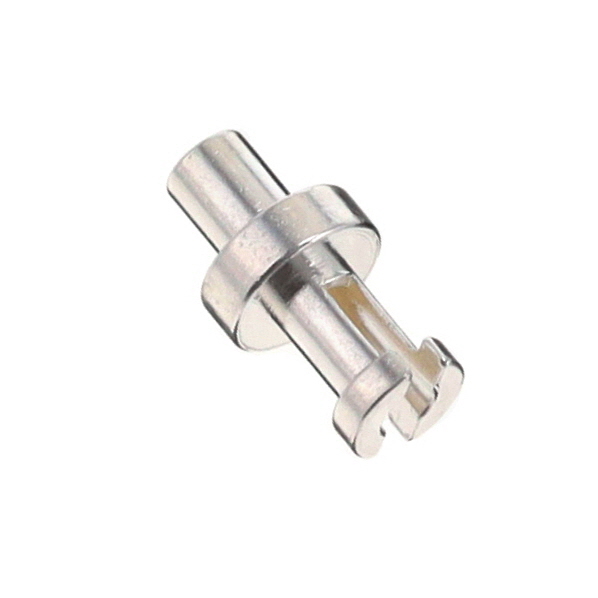

CONN PC PIN CIRC 0.064DIA SILVER
| Part | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Flange Diameter | Flange Diameter [diameter] | Contact Material | Board Thickness | Board Thickness | Contact Finish | Terminal Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 300 µin | 7.62 µm | 0.24 " | 6.1 mm | 1.63 mm | 0.064 in | 1.7 mm | 0.067 " | Through Hole | 2.95 mm | 0.116 in | 2.13 mm | 0.084 in | Single End Slotted | 3.18 mm | 0.125 in | Brass Alloy | 0.062 in | 1.57 mm | Silver | PC Pin | Swage |
Mill-Max Manufacturing Corp. | Non-Insulated | 300 µin | 7.62 µm | 0.24 " | 6.1 mm | 1.63 mm | 0.064 in | 1.7 mm | 0.067 " | Through Hole | 2.95 mm | 0.116 in | 2.13 mm | 0.084 in | Single End Slotted | 3.18 mm | 0.125 in | Brass Alloy | 0.062 in | 1.57 mm | Tin-Lead | PC Pin | Swage |
Mill-Max Manufacturing Corp. | Non-Insulated | 200 Áin | 5.08 Ám | 0.24 " | 6.1 mm | 1.63 mm | 0.064 in | 1.7 mm | 0.067 " | Through Hole | 2.95 mm | 0.116 in | 2.13 mm | 0.084 in | Single End Slotted | 3.18 mm | 0.125 in | Brass Alloy | 0.062 in | 1.57 mm | Tin-Lead | PC Pin | Swage |
