PJ-011 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN PWR JACK 2X5.5MM SOLDER

Part	Housing Material	Current Rating (Amps)	Shielding	Connector Type	Voltage - Rated	Material Flammability Rating	Contact Material [custom]	Features	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)	Contact Material - Plating	Mounting Feature	Mounting Type	Includes	Termination	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Contact Material	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]
Same Sky (Formerly CUI Devices) PJ-011A	Polyoxymethylene (POM)	5 A	Unshielded	Jack	24 VDC	UL94 V-0	Brass Copper Alloy	Mounting Hardware Thread Lock	Black	0.079 in 0.236 in	2 mm 6 mm	Single Switch Normally Closed	Nickel	Bulkhead - Front Side Nut	Panel Mount	1 Connector 1 Nut	Solder Eyelet(s)	0.083 " 0.217 in	2.1 mm 5.5 mm	2	3	Male

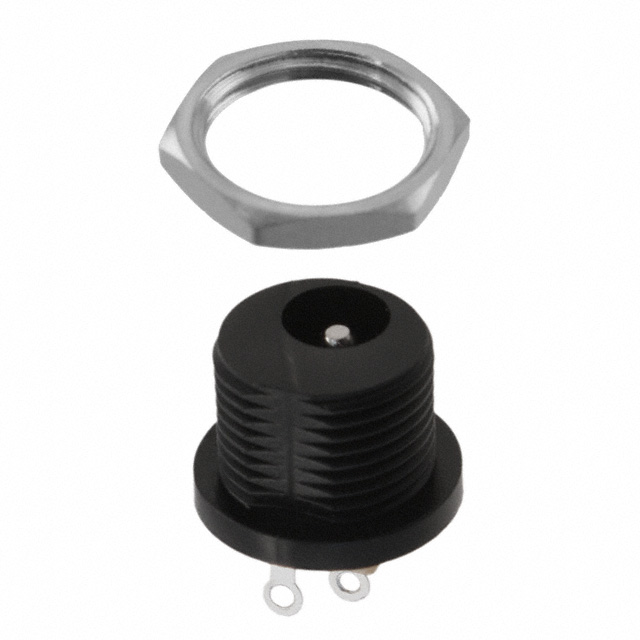

Same Sky (Formerly CUI Devices) PJ-011B	Polyoxymethylene (POM)	5 A	Unshielded	Jack	24 VDC	UL94 V-0		Mounting Hardware Thread Lock	Black			Single Switch Normally Closed	Silver	Bulkhead - Front Side Nut	Panel Mount	1 Connector 1 Nut	Solder Eyelet(s)			2	3	Male	Brass Phosphor Bronze	0.236 in	2.5 mm	0.098 in	6 mm	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-011A		5 A	Unshielded	Jack	24 VDC	UL94 V-0		Mounting Hardware Thread Lock		0.079 in 0.236 in	2 mm 6 mm	Single Switch Normally Closed		Bulkhead - Front Side Nut	Panel Mount		Solder Eyelet(s)	0.083 " 0.217 in	2.1 mm 5.5 mm	2	3	Male
