TARA6F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

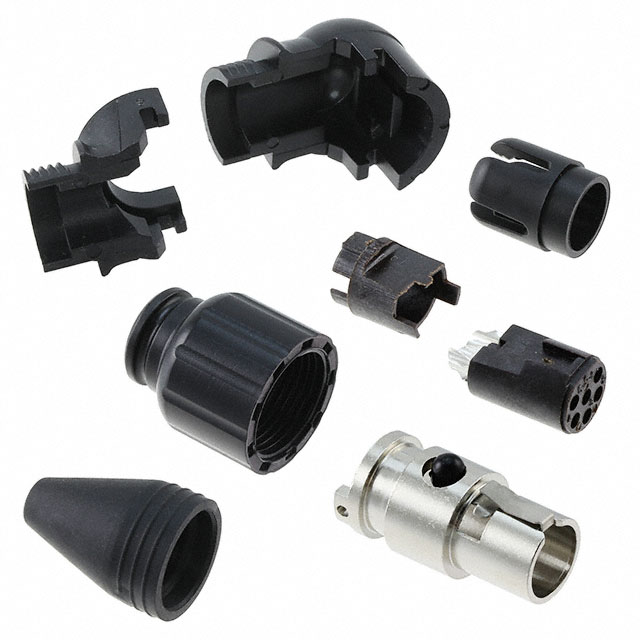

XLR CONNECTOR, RIGHT ANGLE TINI-OG®, 6 CONTACTS, JACK, CABLE MOUNT, SILVER PLATED CONTACTS
| Part | Orientation | Mounting Type | Features | Current Rating (Amps) | Connector Type | Fastening Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Size - Insert | Termination | Applications | Voltage Rating | Primary Material | Number of Positions | Shell Material | Contact Finish - Mating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Keyed | Free Hanging (In-Line) Right Angle | Backshell Cable Clamp Ground Strain Relief | 1.5 A | Plug Female Sockets | Latch Lock | Black Silver | -55 C | 85 °C | Copper Alloy | Mini XLR | Solder | Audio Communication Systems Industrial Medical | 125 VAC | Metal | 6 | Copper Alloy | Silver | 3.05 mm | 3.81 mm | 0.15 in | 0.12 in | Nickel |
