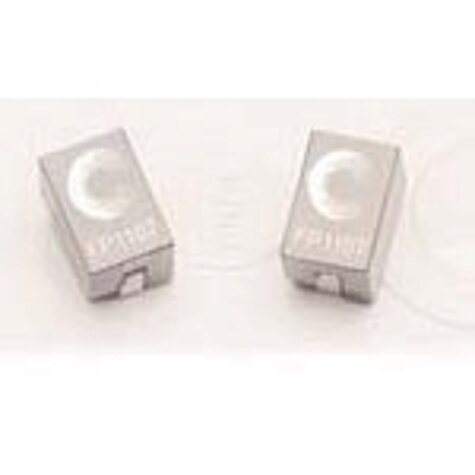

FP1107 Series
Power Inductors - SMD 300nH 35A Flat-Pac FP1107
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD 300nH 35A Flat-Pac FP1107
Beta
⌘K
Power Inductors - SMD 300nH 35A Flat-Pac FP1107
Power Inductors - SMD 300nH 35A Flat-Pac FP1107
Power Inductors - SMD 300nH 35A Flat-Pac FP1107
| Part | Current - Saturation (Isat) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Inductance | Tolerance | DC Resistance (DCR) | Type | Shielding | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current Rating (Amps) | Material - Core | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 45 A | 0.295 in | 7.5 mm | 100 kHz | 230 nH | 10 % | 0.29 mOhm | Drum Core Wirewound | Unshielded | Nonstandard | 125 °C | -40 C | 11 mm | 0.433 in | 7.2 mm | 0.283 in | 55 A | Ferrite | Surface Mount |
 Eaton - Electronics Division | 35 A | 0.295 in | 7.5 mm | 100 kHz | 300 nH | 10 % | 0.29 mOhm | Drum Core Wirewound | Unshielded | Nonstandard | 125 °C | -40 C | 11 mm | 0.433 in | 7.2 mm | 0.283 in | 55 A | Ferrite | Surface Mount |
