1437649 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

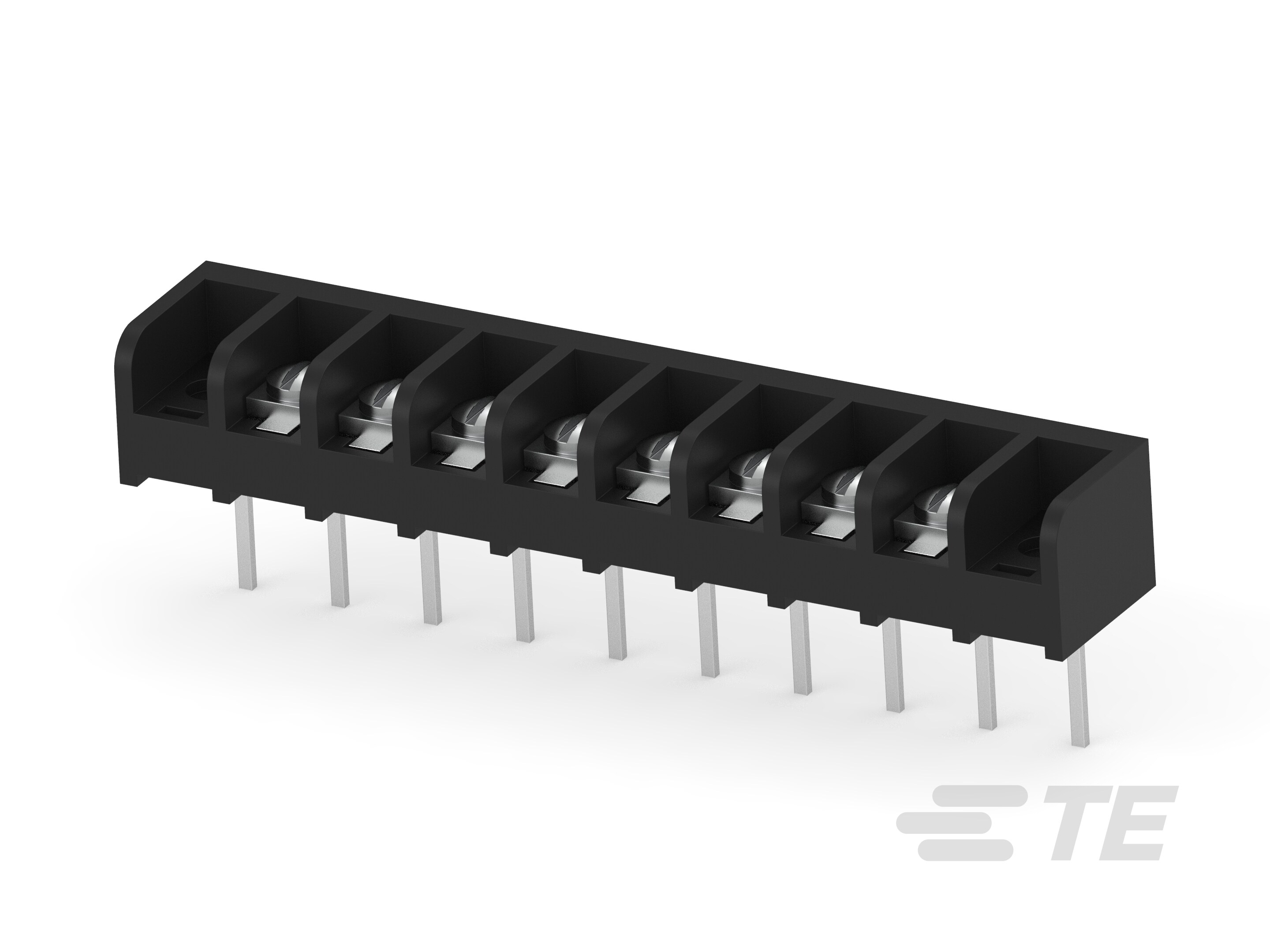

CONN BARRIER STRP 10CIRC 0.325"
| Part | Material - Insulation | Mounting Type | Material Flammability Rating | Operating Temperature | Terminal Screw Material | Terminal Screw Finish | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Terminal Block Type | Current Rating (Amps) | Top Termination | Bottom Termination | Voltage Rating | Color | Barrier Type | Number of Circuits | Pitch | Pitch | Number of Wire Entries | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | Through Hole | UL94 V-0 | 105 C | Steel | Zinc | 14 AWG | 22 AWG | 1 | Barrier Block | 20 A | Screws with Captive Plate | Wire Wrap | 150 VDC | Black | 3 Wall (Tri) | 10 | 0.325 in | 8.26 mm | 10 | |
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | Chassis Panel Through Hole | UL94 V-0 | 105 C | Steel | Zinc | 14 AWG | 22 AWG | 1 | Barrier Block | 20 A | Screws with Captive Plate | Wire Wrap | 150 VDC | Black | 3 Wall (Tri) | 8 | 0.325 in | 8.26 mm | 8 | Flange Positions Stamped |
