09370030 Series
Manufacturer: HARTING
Beta
⌘K

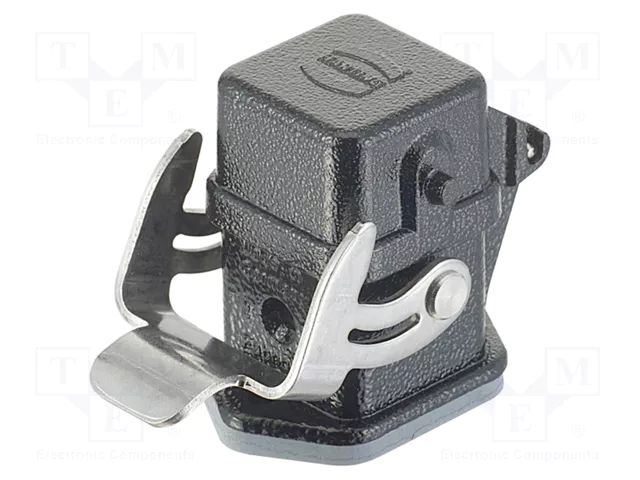

HAN M BASE SCREW MOUNTED PG 13 ROHS COMPLIANT: NA
| Part | Housing Color | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size | Lock Location | Thread Size | Connector Type | Style | Housing Material | Ingress Protection | Housing Finish | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Black | 0.953 in | 34 mm | 24.2 mm | 24.2 mm | 1.339 in | 0.953 in | 3 A | Locking Clip (1) on Hood | PG13.5 | Hood | Top Entry | ||||||

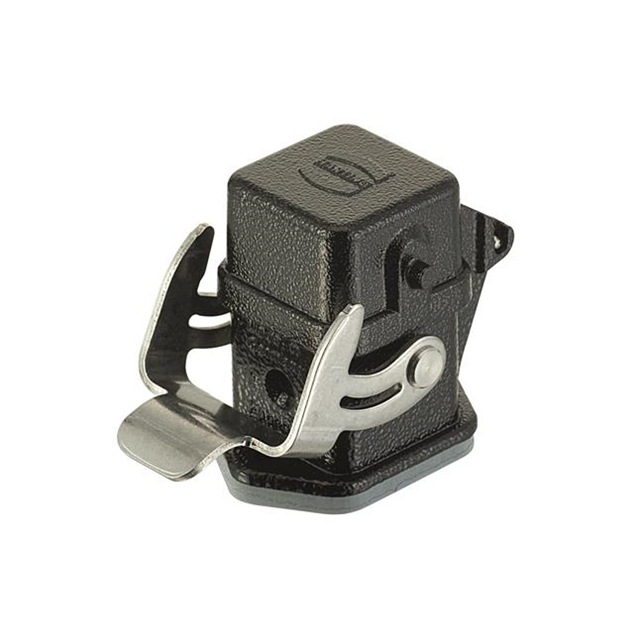

 HARTING | Black | 1.575 " | 25 mm | 40 mm | 28 mm | 0.984 in | 1.102 " | 3 A | Locking Clip (1) on Base Bottom | Base - Panel Mount | Bottom Entry | Zinc Die Cast | IP44 | Powder Coated | Cover | 125 °C | -40 C | |

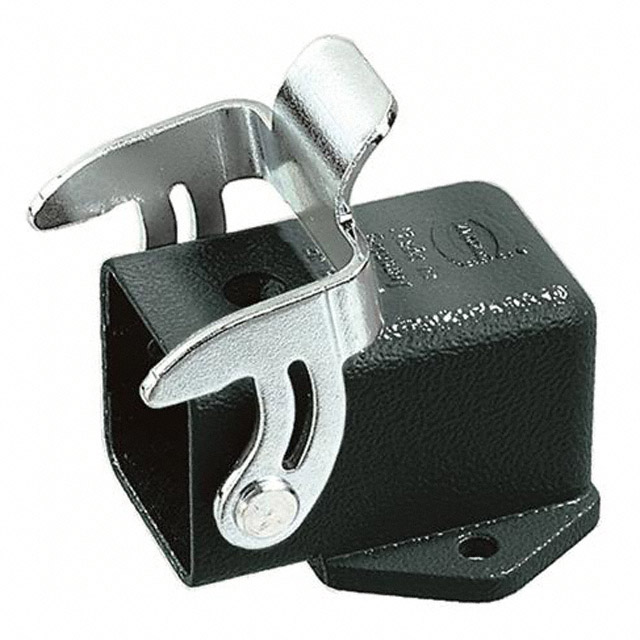

 HARTING | Black | 1.575 " | 28.5 mm | 40 mm | 40.5 mm | 1.122 " | 1.594 " | 3 A | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | Side Entry | Zinc Die Cast | IP44 | Epoxy Powder Paint | 125 °C | -40 C |
