TPS62822 Series

Catalog

2.4-V TO 5.5-V INPUT, 2-A STEP-DOWN CONVERTER WITH 1% ACCURACY IN 1.5-MM X 2-MM VSON-HR PACKAGE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Supplier Device Package	Current - Output	Package / Case	Topology	Frequency - Switching	Output Configuration	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Function	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Utilized IC / Part	Main Purpose	Contents	Voltage - Output

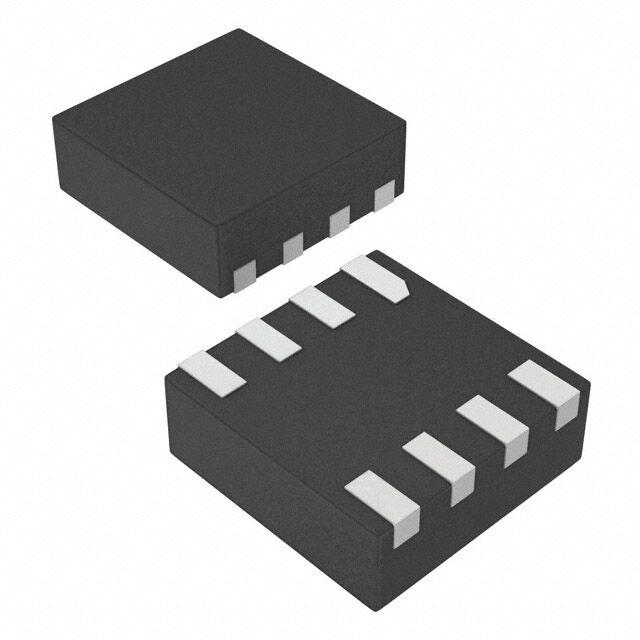

Texas Instruments TPS62822DLCT	-40 C	125 °C	Adjustable	8-VSON-HR (2x1.5)	2 A	8-PowerVFDFN	Buck	2.2 MHz	Positive	4 V	0.6 V	Step-Down	Surface Mount	5.5 V	1	2.4 V

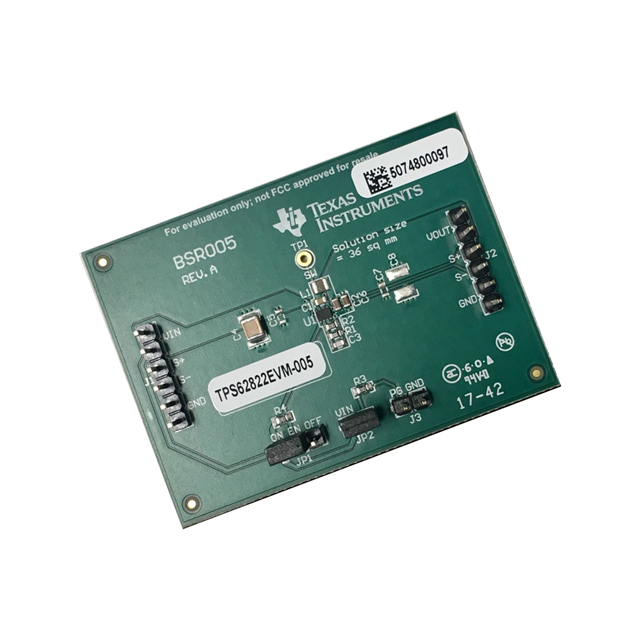

Texas Instruments TPS62822EVM-005					2 A												1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	2.4 V	5.5 V	Buck	TPS62822	DC/DC Step Down	Board(s)	1.8 V
Texas Instruments TPS62822DLCR	-40 C	125 °C	Adjustable	8-VSON-HR (2x1.5)	2 A	8-PowerVFDFN	Buck	2.2 MHz	Positive	4 V	0.6 V	Step-Down	Surface Mount	5.5 V	1	2.4 V
