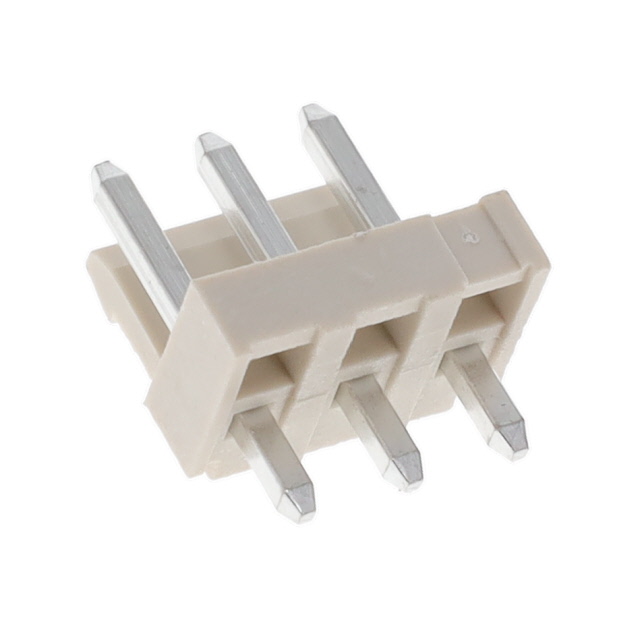

CI5203P1 Series
Manufacturer: Cvilux USA
Beta
⌘K
3 POS 3.96MM(.156) WIRE TO BOARD
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Material Flammability Rating | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Material | Contact Shape | Style | Overall Contact Length [x] | Overall Contact Length [x] | Voltage Rating | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Insulation Color | Insulation Material | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Height | Insulation Height | Connector Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 120 Áin | 3.05 Ám | 120 µin | 3.05 µm | 1 | UL94 V-0 | All | 0.303 in | 7.7 mm | Shrouded - 1 Wall | Brass | Square | Board to Cable/Wire | 14.6 mm | 0.575 in | 250 VAC | Male Pin | 3.7 mm | 0.146 " | Tin | Natural | Nylon 4/6 Polyamide (PA46) | 3.96 mm | 0.156 in | Through Hole | 9.4 mm | 0.37 in | Header | 7 A | 105 ░C | -25 °C | Solder | Locking Ramp |
