ISPLSI 1032E Series

Catalog

IC CPLD 128MC 7.5NS 100TQFP

Part	Supplier Device Package	Mounting Type	Number of Logic Elements/Blocks	Number of I/O	Number of Macrocells	Delay Time tpd(1) Max [Max]	Programmable Type	Package / Case	Number of Gates	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Lattice Semiconductor Corporation ISPLSI 1032E-125LT	100-TQFP (14x14)	Surface Mount	32	64	128	7.5 ns	In System Programmable	100-LQFP	6000	4.75 V	5.25 V	0 °C	70 °C

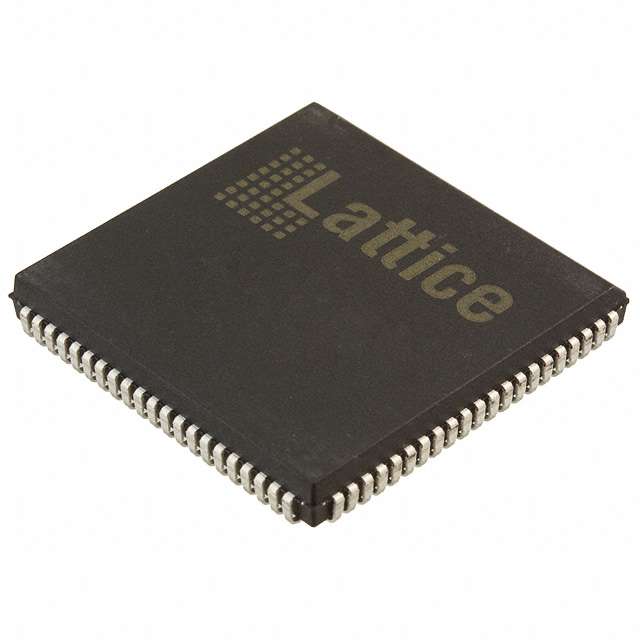

Lattice Semiconductor Corporation ISPLSI 1032E-70LJI	84-PLCC (29.31x29.31)	Surface Mount	32	64	128	15 ns	In System Programmable	84-LCC (J-Lead)	6000	4.5 V	5.5 V	-40 ¯C	85 C
Lattice Semiconductor Corporation ISPLSI 1032E-125LTN	100-TQFP (14x14)	Surface Mount	32	64	128	7.5 ns	In System Programmable	100-LQFP	6000	4.75 V	5.25 V	0 °C	70 °C
Lattice Semiconductor Corporation ISPLSI 1032E-70LTNI	100-TQFP (14x14)	Surface Mount	32	64	128	15 ns	In System Programmable	100-LQFP	6000	4.5 V	5.5 V	-40 ¯C	85 C
Lattice Semiconductor Corporation ISPLSI 1032E-125LJ	84-PLCC (29.31x29.31)	Surface Mount	32	64	128	7.5 ns	In System Programmable	84-LCC (J-Lead)	6000	4.75 V	5.25 V	0 °C	70 °C
Lattice Semiconductor Corporation ISPLSI 1032E-100LJ	84-PLCC (29.31x29.31)	Surface Mount	32	64	128	10 ns	In System Programmable	84-LCC (J-Lead)	6000	4.75 V	5.25 V	0 °C	70 °C
Lattice Semiconductor Corporation ISPLSI 1032E-100LTN	100-TQFP (14x14)	Surface Mount	32	64	128	10 ns	In System Programmable	100-LQFP	6000	4.75 V	5.25 V	0 °C	70 °C
