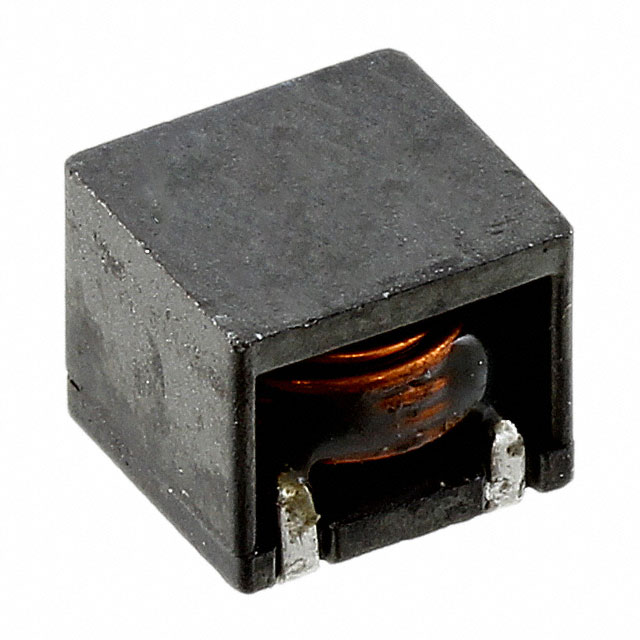

PG0871 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD POWER INDUCTOR 2.00UH 9.5A
| Part | Type | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Package / Case | DC Resistance (DCR) | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance | Inductance Frequency - Test | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Wirewound | 9.5 A | Surface Mount | 130 °C | -40 C | 20 % | Nonstandard | 7.6 mOhm | Shielded | 0.252 in | 6.4 mm | 0.299 " | 0.291 " | 7.4 mm | 7.6 mm | 2.2 µH | 100 kHz | |
 Pulse Electronics | Wirewound | 17.5 A | Surface Mount | 130 °C | -40 C | 20 % | Nonstandard | 2.3 mOhm | Shielded | 0.252 in | 6.4 mm | 0.299 " | 0.291 " | 7.4 mm | 7.6 mm | 1 µH | 100 kHz | |
Pulse Electronics | Wirewound | 4.9 A | Surface Mount | 130 °C | -40 C | 20 % | Nonstandard | 30 mOhm | Shielded | 0.252 in | 6.4 mm | 0.299 " | 0.291 " | 7.4 mm | 7.6 mm | 9.2 µH | 100 kHz | 6.7 A |
