D2HW Series

Basic / Snap Action Switches Subminiature Basic Switch

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Basic / Snap Action Switches Subminiature Basic Switch

...

Part	Operating Position	Operating Position	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection	Electrical Life	Actuator Type	Differential Travel	Differential Travel	Features	Operating Force	Overtravel [custom]	Overtravel [custom]	Circuit	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Release Force	Differential Travel [x]	Differential Travel [x]

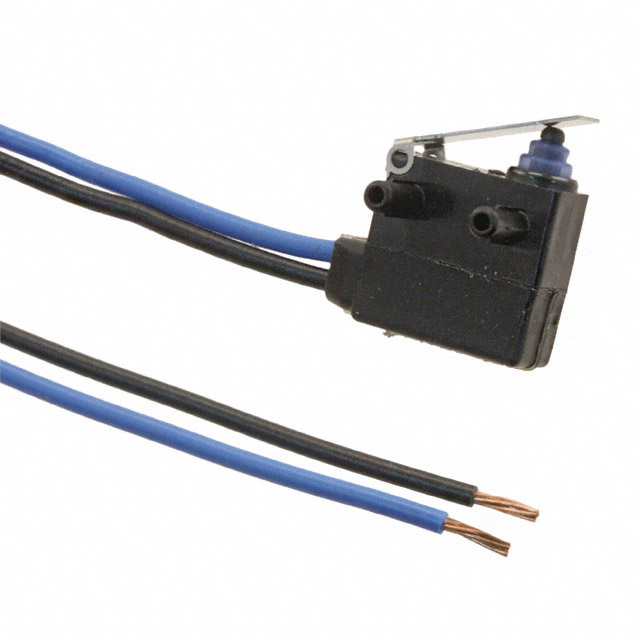

Omron Electronics Inc-EMC Div D2HW-BR213M	7.5 mm	0.295 in	2 A 100 mA	Off-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Lever Straight	0.5 mm	0.02 in	Support Posts	76 gf	0.062 "	1.6 mm	SPST-NO	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount
Omron Electronics Inc-EMC Div D2HW-BR263M	7.4 mm	0.291 in	2 A 100 mA	Off-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Leaf Lever	0.5 mm	0.02 in	Support Posts	183 gf	0.07 "	1.8 mm	SPST-NO	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount	20 gf

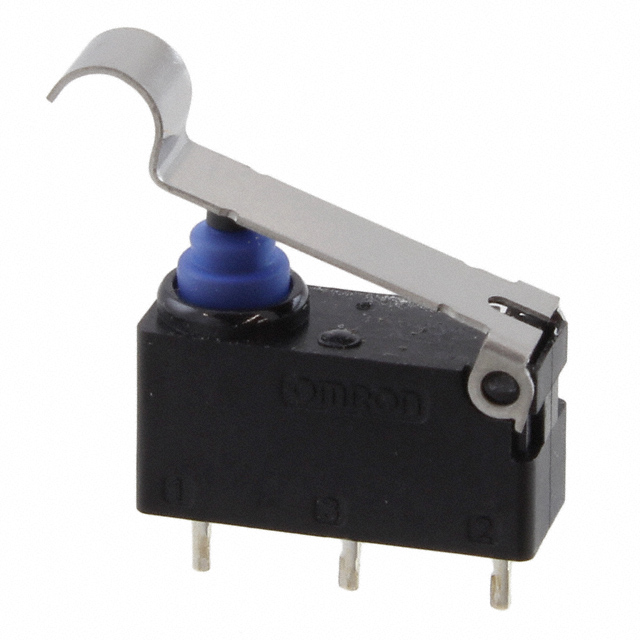

Omron Electronics Inc-EMC Div D2HW-A231D	15.2 mm	0.6 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Lever Simulated Roller	0.5 mm	0.02 in		66 gf	0.075 in	1.9 mm	SPDT	1000000 Cycles	85 °C	-40 C	PC Pin	Through Hole	5.099 gf

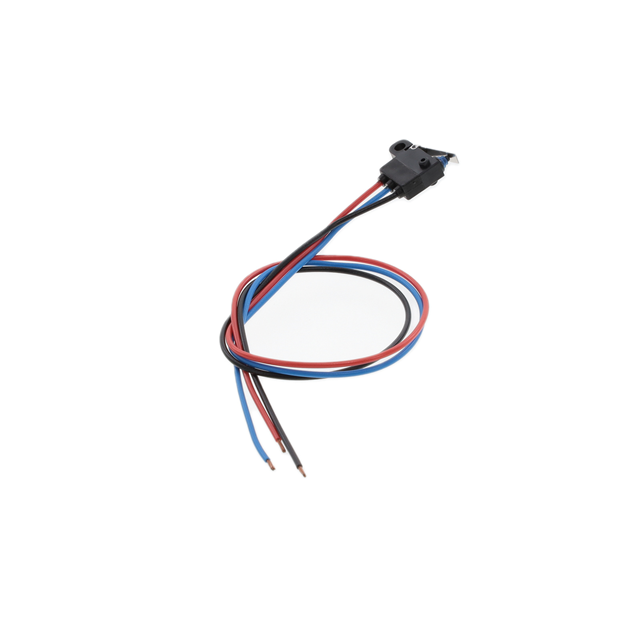

Omron Electronics Inc-EMC Div D2HW-C211M	7.5 mm	0.295 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Lever Straight	0.5 mm	0.02 in		76 gf	0.062 "	1.6 mm	SPDT	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount
Omron Electronics Inc-EMC Div D2HW-BL262M	7.4 mm	0.291 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Leaf Lever	0.5 mm	0.02 in	Support Posts	183 gf	0.07 "	1.8 mm	SPST-NC	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount	20 gf

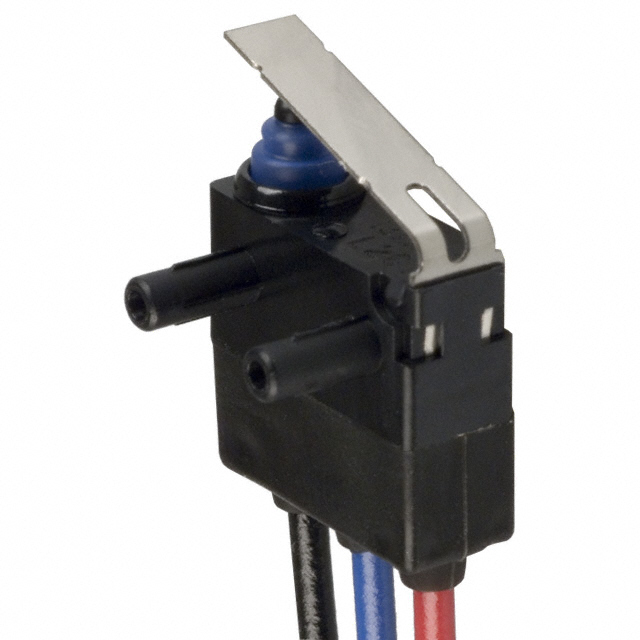

Omron Electronics Inc-EMC Div D2HW-BL261M	7.4 mm	0.291 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Leaf Lever	0.5 mm	0.02 in	Support Posts	183 gf	0.07 "	1.8 mm	SPDT	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount	20 gf

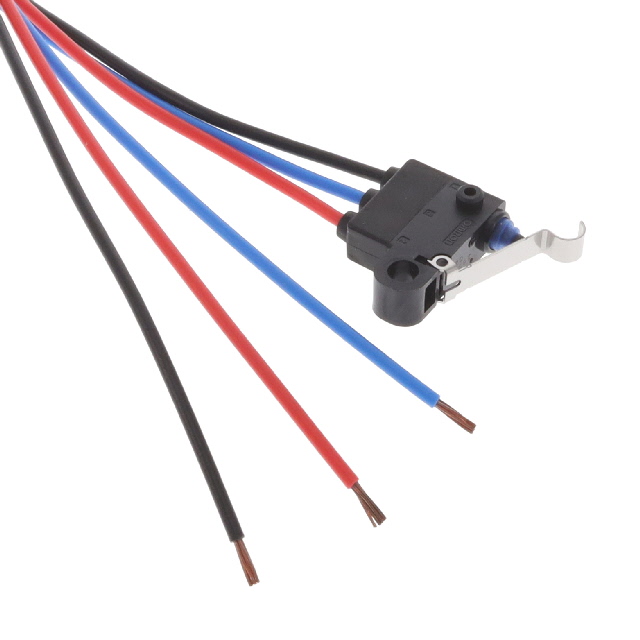

Omron Electronics Inc-EMC Div D2HW-C231M	11.2 mm	0.44 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Lever Simulated Roller	0.5 mm	0.02 in		66 gf	0.075 in	1.9 mm	SPDT	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount	5.099 gf

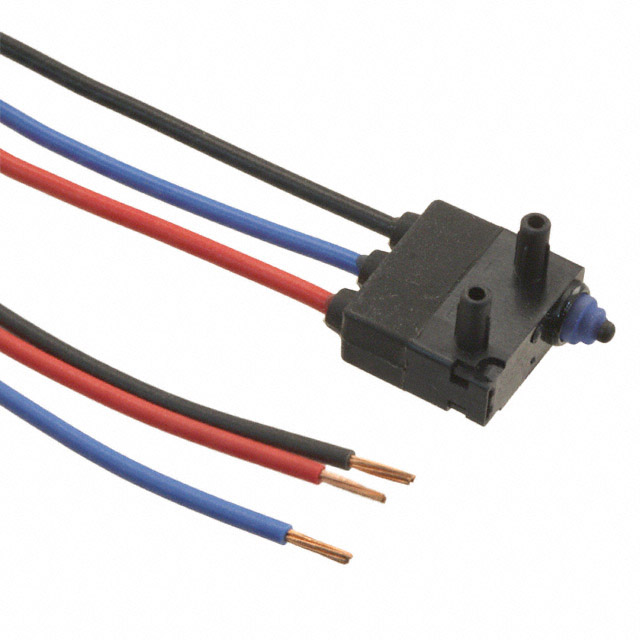

Omron Electronics Inc-EMC Div D2HW-BL201M	6.4 mm	0.25 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)			Support Posts	76 gf	0.055 "	1.4 mm	SPDT	1000000 Cycles	85 °C	-40 C	Wire Leads	Chassis Mount	10 gf	0.01 in	0.25 mm
Omron Electronics Inc-EMC Div D2HW-C201H	6.4 mm	0.25 in	2 A 100 mA	On-Mom	12 V	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)				76 gf	0.055 "	1.4 mm	SPDT	1000000 Cycles	85 °C	-40 C	Solder Lug	Chassis Mount	10 gf	0.01 in	0.25 mm
Omron Electronics Inc-EMC Div D2HW-BR271DR
